Dialogic Brooktrout TR1034 Fax Boards
Field-proven, high performance fax capabilities for analog, T1/E1, and BRI environments


Dialogic Brooktrout TR1034 Fax Boards

Dialogic Products
T1/E1 Low Profile
Dialogic Brooktrout TR1034+ELP4-TE 4 Channel Fractional T1/E1; V.34 PCI Express
#901-016-01
Contact us for pricing!
Dialogic Brooktrout TR1034+ELP8-TE 8 Channel Fractional T1/E1; V.34 PCI Express
#901-016-02
Contact us for pricing!
Dialogic Brooktrout TR1034+ELP16-TE 16 Channel Fractional T1/E1; V.34 PCI Express
#901-016-03
Contact us for pricing!
Dialogic Brooktrout TR1034+ELP24-TE 24 Channel Fractional T1/E1; V.34 PCI Express
#901-016-04
Contact us for pricing!
Dialogic Brooktrout TR1034+ELP30-TE 30 Channel Fractional T1/E1; V.34 PCI Express
#901-016-05
Contact us for pricing!

Click here to jump to more pricing!

Overview:

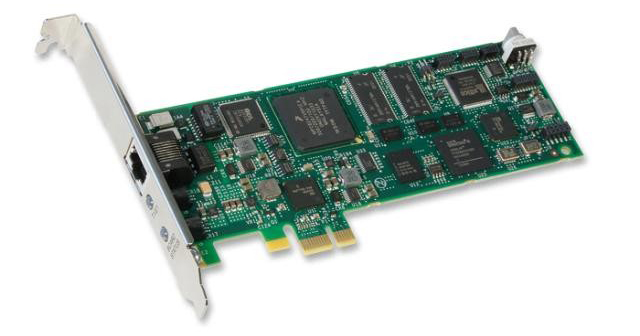

The Dialogic Brooktrout TR1034 Fax Boards are high-performance, intelligent fax boards that offer TDM (analog, BRI, T1/PRI, E1/PRI) fax capabilities. Inbound fax routing makes the Brooktrout TR1034 boards suitable for many computer-based fax applications, including document management, business process automation, and regulatory compliance with Sarbanes Oxley, HIPAA, and Basel II.

Available in both PCI and PCI Express (PCIe) formats, Brooktrout TR1034 boards deliver unparalleled call completion at fast connection rates across a wide variety of fax machines and line conditions.

Dialogic delivers time-tested industry-leading fax technology, offering a broad range of fax products. The Dialogic Brooktrout T.30 Stack has been deployed for more than 20 years.

The Brooktrout TR1034 boards feature sophisticated hardware that operates with low power consumption. Onboard fax protocol processing can reduce a fax server’s CPU utilization and improve overall system performance. Up to four TR1034 fax boards can operate concurrently in a single server, providing scalability to address changing communications needs.

Brooktrout TR1034 boards send and receive TDM faxes up to 33.6 kbps, based on the V.34 fax standard. Not only can TR1034 boards process fax at twice the speed of 14.4 kbps fax boards, they also support V.8 fast handshaking and advanced compression, which can cut call setup and session-management time by one third. A document that can be faxed in one minute with a 14.4 kbps intelligent fax board can be sent in less than 30 seconds with the Brooktrout TR1034 boards. This can translate into significant savings on long distance toll charges.

Brooktrout TR1034 boards are available in a variety of interface types and channel densities, as shown in Table 1. In addition, the Dialogic Technology Expansion Capability (TEC) upgrade allows increased density on Brooktrout TR1034 T1/E1 models.

Interface Channels
Analog 2 and 4
BRI 2 and 4
T1/PRI (PCI only) 4, 8, 16, and 24
E1/PRI (PCI only) 8, 10, 16, 20, and 30
Software-selectable T1/E1 (PCIe only) 4, 8, 16, 24, and 30

Brooktrout TR1034 boards implement multinational ISDN protocols, as well as most supplementary services and many signaling protocols. These features provide application compatibility with most PBXs from major vendors and allow worldwide deployment of fax servers with Brooktrout TR1034 boards.

Features and Benefits:


Features Benefits
Powerful DSPs dedicated to media processing Provides real-time processing of complex operations (such as V.34 fax receiver and transmitter, voice compression, and echo cancellation) without reducing overall system performance, which lowers implementation costs
Analog, BRI, T1/PRI and E1/PRI interfaces Supports a broad range of configurations
Based on V.34 fax standard for mission-critical fax deployments Can process faxes at twice the speed of V.17 fax boards
Inbound fax routing Supports fax servers, fax-to-email, unified messaging, fax document management, workflow and document delivery, and systems that comply with government regulations
Field-proven T.30 implementation Helps to deliver faxes consistently and with high reliability

Specifications:


Technical Specifications
Software-Selectable T1/ E1, Low Profile; PCIe only
CPU speed 300 MHz
Digital signal processors 1 multi-core (532 MIPS)
Telephony interface One RJ-48C T1/E1 interface via an RJ-45 connector; RJ-45 to RJ-45 cable included
Signaling
  • ISDN PRI: North America, Euro ISDN
  • T1 CAS: RBS E&M (wink and immediate)
  • E1 CAS: Configurable MFC R2 support
Media channels Up to 30 V.34 fax and speech
Physical Low-profile; 6.6 in. long x 2.53 in. wide
Server bus x1 lane PCIe 2.0
Power 5 W
T1 or E1 with IP Ethernet, Full Size; PCI only
CPU speed 200 MHz
Digital signal processors Up to 6 (600 MIPS)
Ethernet interface One 10/100Base-T interface
Telephony interface One RJ-48C T1/E1 interface via an RJ-45 connector; RJ-45 to RJ-45 cable included
Signaling
  • ISDN PRI: North America, Euro ISDN
  • T1 CAS: RBS E&M (wink and immediate)
  • E1 CAS: Configurable MFC R2 support
  • SIP (RFC 3261)
  • H.323 (version 4)
Media channels
  • PSTN: Up to 30 V.34 fax and speech
  • IP: Up to 30 V.34 fax and speech (V.17 for G.711 fax)
Telephony bus ECTF H.100; MVIP-90, (via bus adapter)
Physical Full-size; 12.283 in. long x 4.2 in. wide
Server bus 33 MHz PCI 2.2 (3.3/5 V signaling)
Power 7 W max, +5 V power supply required
Analog, Low Profile; PCIe only
CPU speed 200 MHz
Digital signal processors One (122 MIPS)
Telephony interface RJ-11 interface via an RJ-45 connector; RJ-45-to-RJ-11 interface cable included
Signaling Loop start
Media channels Up to 4 V.34 fax and speech
Physical Low-profile; 6.6 in. long x 2.53 in. wide
Server bus x1 lane PCIe 2.0
Power 5.5 W (2 channels or 4 channels)
BRI, Half Size; PCIe only
CPU speed 200 MHz
Digital signal processors One (61 MIPS)
Telephony interface Two BRI interfaces via two RJ-45 connectors; RJ-45 to RJ-45 cable(s) included
Signaling ISDN BRI, Euro, Japan
Media channels Up to 4 V.34 fax and speech
Physical Half-size; 6.875 in. long x 4.2 in. wide
Server bus x4 lane PCIe 1.0a
Power 2 channels, 5.1 W; 4 channels, 5.5 W
Environmental Requirements
Operating temperature +32°F (0°C) to +122°F (+50°C)
Storage temperature -4°F (–20°C) to 158°F (+70°C)
Humidity 8% to 80% noncondensing
Fax Processing
Fax modems ITU T.30 Group 3 V.34, V.17, V.29, V.27ter, V.21
Fax transport mode
  • PSTN: ITU T.30
  • IP (PCI only): ITU T.38; G.711 pass-through (no V.34 support)
Speed Up to 33.6 kbps with auto fallback (up to 14.4 kbps for G.711)
Resolution Normal and fine resolution: 100x200, 200x200
Additional resolutions
  • Black and White: 200x400, 300x300 (super fine), 300x600, 400x800, 400x400, 600x600, 600x1200, 1200x1200
  • Color: 100x100, 300x300, 400x400, 600x600, 1200x1200
Image format compression MH, MR, MMR
Image pass-through Color fax T.42 (JPEG), JBIG T.85 (B/W), T.43 (color)
Page sizes A4, A3, and B4 with scaling; on-board image conversion
Format conversion Enhanced ASCII conversion support with headers and footers
Transmission rate enhancements
  • Error Correction Mode (ECM)
  • Line error detection with repeat good line
Voice Processing
  • Voice codecs
    • G.711 (PCM, 64 kbps, μ-law and A-law)
    • OKI ADPCM (6 kHz and 8 kHz sample rates)
    • WAV (11 kHz 8/16 bit .WAV; 8 kHz 16 bit .WAV)
  • DTMF/MF/Special Information Tone (SIT) detection
  • Playback volume control, pitch corrected speed control
  • Silence compression
Call Progress and Call Control
  • International call progress and tone detection
  • Programmable tone and cadence detection/generation
  • CED, CNG, v.21 modem detection
  • ANI/DNIS, DTMF, and MF detection Human detection
  • Answer machine detection
Support and Installation
IP Interoperability Dialogic’s FoIP products interoperate with a variety of IP PBXs, IP gateways and SIP trunks.
Operating System Support Windows, Linux, and Solaris
Installation and Configuration
  • Windows Plug and Play
  • Graphical Configuration Tool under Windows
Application Programming Interface Dialogic Brooktrout Bfv API
Environmental
Operating temperature 0°C to 50°C
Humidity 10% to 95% non-condensing
Reliability (Estimated MTBF Per Telcordia Method 1)
T1/E1 PCI: 502,200 hours (full-length board)
PCIe: 911,000 hours (low-profile board)
Analog PCIe: 1,100,000 hours (low-profile board)
BRI PCIe: 815,600 hours (half-length board)
Warranty
Warranty 5-years

Documentation:

Download the Dialogic Brooktrout TR1034 Fax Boards Datasheet (.PDF)
