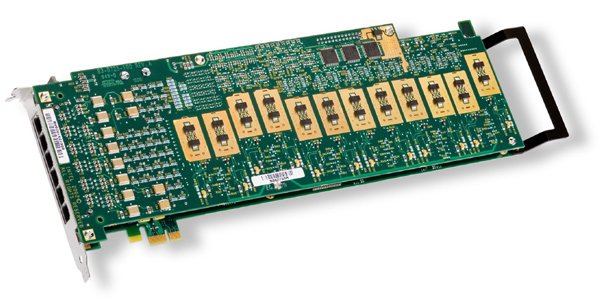

Dialogic D/120JCT-LS Media Boards
Field proven, high performance, 12 port media processing for analog networks


Dialogic D/120JCT-LS Media Boards

Dialogic Products
JCT Media Boards
Dialogic D/120JCT-LSW 12-port Analog Media Board, Loop-Start, PCI
#881-762
Contact us for pricing!
Dialogic D/120JCT-LSEW 12-port Analog Media Board, Loop-Start, PCIe
#884-594
Contact us for pricing!

Click here to jump to more pricing!

Overview:

The Dialogic D/120JCT-LS Media Board is a 12-port analog PCI or PCI Express board well-suited for developing advanced communications applications that require multimedia resources. This high performance, scalable product supports voice, fax, and software-based speech recognition processing in a single PCI or PCI Express slot, providing 12 analog telephone interface circuits for direct connection to analog loop start lines.

Dialogic JCT Media Boards – including this model - can be used by developers to provide small- and medium-sized enterprise Computer Telephony (CT) applications that require high-performance voice and fax processing. Among the features and benefits of this model, and other Dialogic JCT Media Boards, are the following. They use Digital Signal Processor (DSP) voice processing technology, making them well-suited for server-based CT systems under Windows and Linux. They also provide a powerful platform for creating sophisticated Interactive Voice Response (IVR) applications for the small and medium-sized enterprise market segments. Their Caller ID support lets applications, such as IVR, receive calling party information via a telephone trunk line; Caller ID is supported for North America (CLASS protocol), the United Kingdom (CLI protocol), and in Japan (CLIP protocol). Features such as fax and software-based speech recognition processing enable unified messaging applications. They also provide Automatic Gain Control (AGC), so even a weak telephone signal can be recorded and replayed with clarity.

Features and Benefits:


Features Benefits
Supports G.726 bit exact and GSM coders Enables implementation of unified messaging applications that meet VPIM standards
Supports Continuous Speech Processing (CSP) Provides a flexible speech processing technology, which, when coupled with efficient drivers, off-loads critical real-time signal processing in speech-enabled applications to on-board DSPs. Reduces system latency, increases recognition accuracy, and improves overall system response time for high-density speech solutions.
A-law or μ-law voice coding at dynamically selectable data rates, 24 kbit/s to 64 kbit/s, selectable on a channel-by-channel basis Allows for a beneficial tradeoff between disk storage and voice quality
Telcordia CLASS, UK CLI, Japanese Caller ID, and other international protocols Supports an international Caller ID capability via on-hook audio path
A variety of country-specific approvals Expands an application’s ability to serve several global market segments at no extra cost
Separate models available with Universal PCI or PCI Express edge connector Universal PCI form factor compatible with 3.3 V and 5.0 V bus signals; and PCI Express form factor compatible with x1 lane configuration or higher.
Supports up to four (4) channels of DSP-based on-board fax Reduces the number of boards per system

Specifications:


Technical Specifications
Number of ports 12
Maximum boards per system 8 (Linux and Windows). Number may be limited by application and system performance
CT Bus loads per board 1
Maximum CT Bus loads per system 20
Digital network interface On-board loop start interface (12)
Resource sharing bus CT Bus
Control microprocessors Intel 80486 GXSF running at 32.768 MHz with 2 MB SDRAM
Digital signal processor Freescale DSP56303 @ 100 MHz, with 128Kx24 private SRAM
Supported operating systems Windows; Linux
CSP Yes
FAX Yes
Signaling Analog loop start
Host Interface PCI PCI Express
Bus compatibility Complies with PCI-SIG Bus Specification, Rev. 2.2; Universal slot (5 V or 3.3 V) Complies with PCI-SIG PCI Express Base Specification, Rev. 1.1; x1 or higher compatible
Bus speed 33 MHz maximum 2.5 GHz maximum per direction
Bus mode 32-bit -
Shared memory 32 KB to 64 KB page 32 KB to 64 KB page
Interrupt 1 IRQ (INTA) shared by Dialogic JCT PCI Media Boards Legacy INTA emulation shared by Dialogic JCT PCIe Media Boards
I/O ports None None
Physical Dimensions
Dimensions Standard-height, full length form factor
12.28 in. (31.2 cm) long
4.2 in. (10.67 cm) high
Power Requirements PCI PCI Express
+3.3 VDC 1.2 A typical; 1.4 A maximum 1.12 A typical, 1.4 A maximum
+5 VDC 1.2 A typical; 1.4 A maximum -
+12 VDC 235 mA typical; 285 mA maximum 800 mA typical, 900 mA maximum
–12 VDC 80 mA typical; 100 mA maximum -
Environmental Requirements
Operating temperature +32°F (0°C) to +122°F (+50°C)
Storage temperature -4°F (–20°C) to 158°F (+70°C)
Humidity 8% to 80% noncondensing
Telephone Interface
Trunk type Loop start
Ground start for inbound applications with AC ringing
Impedance 600 Ohms nominal
Ring detection 40 Vrms to 130 Vrms, 15.3 Hz to 68.0 Hz (each configurable by parameter*)
Loop current range 20 mA to 60 mA, (Euro) 20 mA to 120 mA, polarity insensitive
Echo return loss 17 dB minimum (at country impedance)
Crosstalk coupling >–75 dB
Speech digitization 64 kbit/s, µ-law PCM
Frequency response 300 Hz to 3400 Hz ±3 dB (transmit and receive)
Connector RJ14; 6 jacks (each jack supports 2 channels)
Reliability
Estimated MTBF
  • Per Telcordia Method
  • PCI: 154,000 hours
  • PCI Express: 154,000 hours
Springware/JCT Technical Specifications
Facsimile
Fax compatibility
  • ITU-T G3 compliant (T.4, T.30)
  • ETSI NET/30 compliant
Data rate
  • 14,400 b/s (v.17) send
  • 9.6 kbit/s (v.29) receive
Variable speed selection Automatic step-down to 12,000 b/s, 9600 b/s, 7200 b/s, 4800 b/s, and lower
Transmit data modes
  • Modified Huffman (MH)
  • Modified Read (MR)
Receive data modes MH, MR
File data formats Tagged Image File Format-Fax (TIFF-F) for transmit/receive MH and MR
ASCII-to-fax conversion
  • Host-PC-based conversion
  • Direct transmission of text files
  • Windows fonts supported
  • Page headers generated automatically
Error correction Detection, reporting, and correction of faulty scan lines
Image widths
  • 1728 pixels
  • 2048 pixels
  • 2432 pixels
Image scaling Automatic horizontal and vertical scaling between page sizes
Polling modes
  • Normal
  • Turnaround
Image resolution
  • Normal (203 pels/in. × 98 lines/in., 203 pels/2.54 cm × 98 lines/2.54 cm)
  • Fine (203 pels/in. × 196 lines/in., 203 pels/2.54 cm × 196 lines/2.54 cm)
Fill minimization Automatic fill bit insertion and stripping
Audio Signal
Receive range –40 dBm to –7 dBm nominal, configurable by parameter*
Automatic gain contro
  • Application can enable/disable
  • Above –22 dBm results in full-scale recording, configurable by parameter*
Silence detection –40 dBm nominal, software adjustable*
Transmit level (weighted average) –9.5 dBm nominal, configurable by parameter*
Transmit volume control 40 dB adjustment range, with application-definable increments, capped according to country-specific regulations
Frequency Response
24 kbit/s 300 Hz to 2600 Hz ±3 dB
32 kbit/s 300 Hz to 3400 Hz ±3 dB
48 kbit/s 300 Hz to 2600 Hz ±3 dB
64 kbit/s 300 Hz to 3400 Hz ±3 dB
Audio Digitizing
13 kbit/s GSM @ 8 kHz sampling
24 kbit/s 4-bit OKI ADPCM @ 6 kHz sampling
32 kbit/s 4-bit OKI ADPCM @ 8 kHz sampling
G.726 @ 8 kHz sampling
48 kbit/s G.711 µ-law PCM @ 6 kHz sampling
64 kbit/s G.711 µ-law PCM @ 8 kHz sampling
Digitization selection Selectable by application on function call-by-call basis
Playback speed control
  • Pitch controlled
  • Available for 24 kbit/s and 32 kbit/s data rates
  • Adjustment range: ±50%
  • Adjustable through application or programmable DTMF control
DTMF Tone Detection
DTMF digits 0 to 9, *, #, A, B, C, D per Telcordia LSSGR Sec 6
Dynamic range –38 dBm0 to –3 dBm0 per tone, configurable by parameter*
Minimum tone duration 40 ms, can be increased with software configuration
Interdigit timing
  • Detects like digits with a >40 ms interdigit delay
  • Detects different digits with a 0 ms interdigit delay
Acceptable twist and frequency variation Meets Telcordia LSSGR Sec 6 and EIA 464 requirements
Noise tolerance Meets Telcordia LSSGR Sec 6 and EIA 464 requirements for Gaussian, impulse, and power line noise tolerance
Cut-through Local echo cancellation permits 100% detection with a >4.5 dB return loss line
Talk-off
  • Detects less than 20 digits while monitoring Telcordia TR-TSY-000763 standard speech tapes (LSSGR requirements specify detecting no more than 470 total digits)
  • Detects 0 digits while monitoring MITEL speech tape #CM 7291
Global Tone Detection
Tone type Programmable for single or dual
Maximum number of tones Application-dependent
Frequency range Programmable within 300 Hz to 3500 Hz
Maximum frequency deviation Programmable in 5 Hz increments
Frequency resolution ±5 Hz. Separation of dual frequency tones is limited to 62.5 Hz at a signal-to-noise ratio of 20 dB
Timing Programmable cadence qualifier, in 10 ms increments
Dynamic range Programmable, default set at –6 dBm0 to –3 dBm0 per tone
Global Tone Generation
Tone type Generate single or dual tones
Frequency range Programmable within 200 Hz to 4000 Hz
Frequency resolution 1 Hz
Duration 10 ms increments
Amplitude Programmable within –43 dBm to –3 dBm per tone
MF Signaling
MF digits 0 to 9, KP, ST, ST1, ST2, ST3 per Telcordia LSSGR Sec 6, TR-NWT-000506 and ITU-T Q.321
Transmit level Complies with Telcordia LSSGR Sec 6, TR-NWT-000506
Signaling mechanism Complies with Telcordia LSSGR Sec 6, TR-NWT-000506
Dynamic range for detection –25 dBm0 to –3 dBm0 per tone
Acceptable twist 6 dB
Acceptable frequency variation Less than ±1 Hz
Call Progress Analysis
Call Progress Analysis
  • Busy tone detection
  • Ring back tone detection
  • Positive voice detection
  • Positive answering machine detection
  • Fax/modem detection
  • Intercept detection
  • Dial tone detection before dialing
Tone Dialing
DTMF digits 0 to 9, *, #, A, B, C, D per Telcordia LSSGR Sec 6, TR-NWT-000506
Frequency variation Less than ±1 Hz
Rate 10 digits/s, configurable by parameter*
Level –4.0 dBm per tone, nominal, configurable by parameter*
Pulse Dialing
10 digits 0 to 9
Pulsing rate
  • 10 pulses/s, nominal
  • 20 pulses/s for Japan, configurable by parameter*
Break ratio 60% nominal, configurable by parameter*
Analog Caller Identification
Applicable standards
  • Telcordia TR-NWT-000030
  • Telcordia TR-NWT-000031
  • Telcordia TR-NWT-001188
  • TAS T5 PSTN1 ACLIP: 1994 (Singapore)
Modem standard Bell 202 or V.23, serial 1200 bits/sec (simplex FSK signaling)
Receive sensitivity –48 dBm (–50 dBv) to –1 dBm
Noise tolerance Minimum 18 dB SNR over 0 to –48 dBm dynamic range
Data formats Single Data Message (SDM) and Multiple Data Message (MDM) formats via API calls and commands
Line impedance AC coupled 600 Ohm (@ 1.8 kHz) termination during Caller ID on-hook detection interval
Message formats ASCII or binary SDM, MDM message content
Analog Display Services Interface (ADSI)
Analog Display Services Interface (ADSI)
  • FSK generation per Telcordia TR-NWT-000030
  • CAS tone generation and DTMF detection per Telcordia TR-NWT-001273

* Analog levels: 0 dBm0 corresponds to a level of +3 dBm at tip-ring analog point. Values vary depending on country requirements; contact your account manager

Documentation:

Download the Dialogic D/120JCT-LS Media Boards Datasheet (.PDF)
