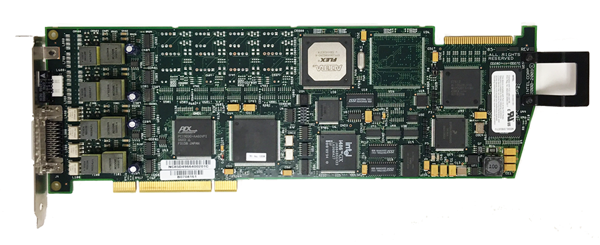

Dialogic D/42JCT-U PBX Integration Board
Field proven, 4 port, PBX Integration board with media resources


Dialogic D/42JCT-U PBX Integration Board

Dialogic Products
JCT Media Boards
Dialogic D/42JCT-UEW 4-port PBX Integration Board, PCIe, RoHS 5/6
#887‐628
Contact us for pricing!

Click here to jump to more pricing!

Overview:

The Dialogic D/42JCT-U PBX integration board offers advanced digital connectivity to many popular private branch exchanges (PBXs) for unified and Internet-ready call, voice, and fax processing applications in small- to medium-sized enterprises. It is available in a PCI Express (PCIe) version.

Featuring programmable soft-ports capable of supporting voice, fax, call handling, and host-based speech technologies, the D/42JCT-U reduces the cost of ownership for systems requiring multimedia functionality. The universal PBX interface of the D/42JCT-U offers downloadable firmware for a selection of widely used telephone equipment switches. Support for advanced PBX features such as called and calling number identification, message waiting notification, busy lamp fields, and disconnect supervision is useful for developing unified messaging, interactive voice response (IVR), and call management solutions.

By choosing the D/42JCT-U for enterprise applications, developers eliminate the complexities associated with analog or T1 integration, as well as costly investments in proprietary computer-telephone integration (CTI) links.

Features and Benefits:


Features Benefits
Four digital interfaces to Avaya, Mitel, NEC Nortel, and Siemens switches Allows connection to popular PBX models by leading manufacturers
Digital interfaces to the PBX Enables tight, direct switch integration that eliminates the need for expensive digital/analog conversion cards or serial ports
Access to switch information Supports important PBX features such as ANI, DNIS, date/time, and reason for call redirection
Advanced digital connectivity Provides more information from the PBX than analog connection without the need for separate links and third-party call control
Phone-emulated supervised/unsupervised transfers and disconnect supervision Allows faster, more reliable transfers than analog connection
Supports GSM and G.726, the coders of choice for Internet-ready unified messaging applications Enables messaging integration with many popular email servers and applications
One channel of Softfax per card, sharable across CT Bus Provides scalable fax capability at a low cost by eliminating the need for additional fax hardware

Specifications:


Technical Specifications
Voice resources 4
Fax resources 1
Conferencing resources 0
CSP Yes
Form factor PCIe x1
Physical Dimensions Standard-height, full length form factor
12.28 in. (31.2 cm) long
4.2 in. (10.67 cm) high
Resource bus CT Bus
Connection Digital
Network interface Avaya, Mitel, NEC, Nortel, Siemens
Signaling Digital PBX
Operating system Linux, Windows
Volts PCIe: 3.3 V, 12 V
Required accessories D82UCABLE; cable connects board to PBX

PBXs Supported:


Manufacturers Phone Emulations PBX Switches
Avaya 7434 (4-wire) DEFINITY, System 75/85
Avaya 8434 (2-wire) DEFINITY (G3 V4 and higher)
Mite Superset 420 SX-50
Mite Superset 430 SX-200ML, SX-2000
NEC DTERM 111 NEAX 2400, NEAX 2000 IVS, IVS2, IPS, Electra Elite, Electra Professional
Nortel Networks M2616 Meridian 1
Nortel Networks M7324 Norstar DR5, CICS, MICS
Siemens Optiset E Hicom
Siemens ROLMphone 400 (RP 400) CBX 9005, 9006, 9751

Documentation:

Download the Dialogic D/42JCT-U PBX Integration Board Datasheet (.PDF)



Dialogic Products
JCT Media Boards
Dialogic D/42JCT-UEW 4-port PBX Integration Board, PCIe, RoHS 5/6
#887‐628
Contact us for pricing!
Accessories
D82UCABLEQ Cable required to connect board to PBX
#883-026
Contact us for pricing!
