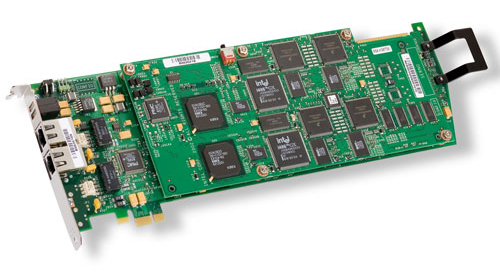

Dialogic D/480JCT-2T1 and D/600JCT-2E1 Media Boards
Field proven, high performance, media processing for T1/E1 networks


Dialogic D/480JCT-2T1 and D/600JCT-2E1 Combined Media Boards

Dialogic Products
JCT Media Boards
Dialogic D/480JCT-2T1 48-port Digital T1 Media Board, PCIe
#884-589
Contact us for pricing!
Dialogic D/600JCT-2E1 60-port Digital E1 Media Board, PCIe
#884-592
Contact us for pricing!

Click here to jump to more pricing!

Overview:

The Dialogic D/480JCT-2T1 Media Board is a 48-port Digital T1 PCI Express board and the Dialogic D/600JCT-2E1 Media Board is a 60- port Digital E1 PCI Express board. Both of these boards are well-suited for developing advanced communications applications requiring digital network interfaces as well as multimedia resources. These high performance, scalable products support voice, fax, and softwarebased speech recognition processing in a single PCI Express slot.

Dialogic JCT Media Boards – including these models - can be used by developers to provide small- and medium-sized enterprise Computer Telephony (CT) applications that require high-performance voice and fax processing. Among the features and benefits of these boards, and other Dialogic JCT Media Boards, are the following. They have On-board Digital Signal Processor (DSP) based voice processing technology and they are well-suited for server-based CT systems under Windows and Linux. They also provide a powerful platform for creating sophisticated Interactive Voice Response (IVR) applications for the small and medium-sized enterprise market segment. Features such as fax and software-based speech recognition processing enable unified messaging applications. They also provide Automatic Gain Control (AGC), so even a weak telephone signal can be recorded and replayed with clarity.

Features and Benefits:


Features Benefits
48 to 60 independent voice channels, and 24 to 48 T1 or 30 to 60 E1 network channels in a single PCI Express slot Lower costs while creating larger high-density systems with fewer boards per chassis
Supports G.726 bit exact and GSM coders Enables implementation of unified messaging applications that meet VPIM standards
Silence-compressed recording Eliminates silence and preserves hard disk space
Unified call control access through Dialogic Global Call Software interface Provides worldwide application portability and shortens development time by using the same API for almost any network protocol
Available with PCI Express edge connector PCI Express form factor compatible with x1 slot (x1 or higher compatible).
Supports DSP-based onboard fax and host-based speech recognition (fax and host-based speech recognition are mutually exclusive) Maximizes the number of boards in the system

Specifications:


Technical Specifications D/480JCT-2T1 D/600JCT-2E1
Number of ports 48 60
Maximum boards per system 10. Number may be limited by factors including application, system performance, and the number of CT Bus loads per board
CT Bus loads per board Approximately 4 Approximately 4
Maximum CT Bus loads per system 20 20
Digital network interface Onboard DSX-1 interface Onboard E-1 interface
Resource sharing bus H.100 CT Bus H.100 CT Bus
Control microprocessors 4 Intel486 GX processors 4 Intel486 GX processors
Digital signal processor Freescale DSP56303 @ 100 MHz, with 128Kx24 private Freescale DSP56303 @ 100 MHz, with 128Kx24 private
Supported operating systems Windows; Linux Windows; Linux
CSP Yes One E1 span only
Signaling Digital ISDN PRI (CAS) R2MF
Host Interface
Bus compatibility Complies with PCI-SIG PCI Express Base Specification, Rev. 1.1; x1 or higher compatible
Bus speed 2.5 GHz maximum per direction
Shared memory 32 KB to 64 KB page
Interrupt Legacy INTA emulation shared by Dialogic JCT PCIe Media Boards
I/O ports None
Physical Dimensions
Dimensions Standard-height, full-length form factor
12. 283 in. (31.200 cm) long (without edge retainer)
0.79 in. (2.007 cm) wide (total envelope)
3.87 in. (9.830 cm) high (excluding edge connector)
Power Requirements
+3.3 VDC 1.12 A typical, 1.4 A maximum
+12 VDC 800 mA typical, 900 mA maximum
Environmental Requirements
Operating temperature +32°F (0°C) to +122°F (+50°C)
Storage temperature -4°F (–20°C) to 158°F (+70°C)
Humidity 8% to 80% noncondensing
Telephone Interface
Clock rate 1.544 Mb/s ±32 ppm 2.048 Mb/s ±50 ppm
Level - 2.048 Mb/s ±32 ppm
Level 3.0 V (nominal) 2.37 V (nominal) for 75 Ohm lines
3.0 V (nominal) for 120 Ohm lines
Pulse width 323.85 ns (nominal) 244 ns (nominal)
Line impedance 100 Ohm ±10% 75 Ohm, unbalanced
120 Ohm, balanced
Other electrical characteristics Complies with AT&T TR62411 and ANSI T1.403-1989 Complies with ITU-T Rec. G.703
Framing SF (D3/D4)
ESF for ISDN
ITU-T G.704-1988 with CRC4
Line coding AMI
AMI with B7 stuffing
B8ZS
HDB3
Clock and data recovery Complies with AT&T TR62411 and Telcordia TA-TSY-000170 Complies with ITU-T Rec. G.823-1988
Jitter tolerance Complies with AT&T TR62411 and ANSI T1.403-1989 Complies with ITU-T Rec. G.823, G.737, G.739, G.742-1988
Connectors RJ-48C BNC for 75 Ohm lines
RJ-48C for 120 Ohm lines
Telephony bus connector H.100-style 68-pin fine pitch card edge connector H.100-style 68-pin fine pitch card edge connector
Loopback Supports switch-selectable local analog loopback and software-selectable local digital loopback
Reliability
Estimated MTBF
  • Per Telcordia Method 1
  • PCI Express: 154,000 hours
Springware/JCT Technical Specifications
Facsimile
Fax compatibility
  • ITU-T G3 compliant (T.4, T.30)
  • ETSI NET/30 compliant
Data rate
  • 14,400 b/s (v.17) send
  • 9600 b/s receive
Variable speed selection Automatic step-down to 12,000 b/s, 9600 b/s, 7200 b/s, 4800 b/s, and lower
Transmit data modes
  • Modified Huffman (MH)
  • Modified Read (MR)
Receive data modes MH, MR
File data formats Tagged Image File Format-Fax (TIFF-F) for transmit/receive MH and MR
ASCII-to-fax conversion
  • Host-PC-based conversion
  • Direct transmission of text files
  • Windows fonts supported
  • Page headers generated automatically
Error correction Detection, reporting, and correction of faulty scan lines
Image widths
  • 1728 pixels
  • 2048 pixels
  • 2432 pixels
Image scaling Automatic horizontal and vertical scaling between page sizes
Polling modes
  • Normal
  • Turnaround
Image resolution
  • Normal (203 pels/in. × 98 lines/in., 203 pels/2.54 cm × 98 lines/2.54 cm)
  • Fine (203 pels/in. × 196 lines/in., 203 pels/2.54 cm × 196 lines/2.54 cm)
Fill minimization Automatic fill bit insertion and stripping
Audio Signal
Receive range
  • (T-1) –40 to +2.5 dBm0 nominal, configurable by parameter*
  • (E-1) –43 to +2.5 dBm0 nominal, configurable by parameter*
Automatic gain contro
  • Application can enable/disable
  • Above –18 dBm0 (T-1) or –21 dBm0 (E-1) results in full-scale recording, configurable by parameter*
Silence detection –38 dBm0 nominal, software adjustable*
Transmit level (weighted average)
  • (T-1) –9 dBm0 nominal, configurable by parameter*
  • (E-1) –12.5 dBm0 nominal, configurable by parameter*
Transmit volume control 40 dB adjustment range, with application-definable increments and legal limit cap
Frequency Response
24 kbit/s 300 Hz to 2600 Hz ±3 dB
32 kbit/s 300 Hz to 3400 Hz ±3 dB
48 kbit/s 300 Hz to 2600 Hz ±3 dB
64 kbit/s 300 Hz to 3400 Hz ±3 dB
Audio Digitizing
13 kbit/s GSM @ 8 kHz sampling
24 kbit/s OKI ADPCM @ 6 kHz sampling
32 kbit/s OKI ADPCM @ 8 kHz sampling
G.726 @ 8 kHz sampling
48 kbit/s A-law G.711 PCM @ 6 kHz sampling
µ-law G.711 PCM @ 6 kHz sampling
64 kbit/s A-law G.711 PCM @ 8 kHz sampling
µ-law G.711 PCM @ 8 kHz sampling
Digitization selection Selectable by application on function call-by-call basis
Playback speed control
  • Pitch controlled
  • Available on OKI ADPCM and G.711 PCM
  • Adjustment range: ±50%
  • Adjustable through application or programmable DTMF control
DTMF Tone Detection
DTMF digits 0 to 9, *, #, A, B, C, D per Telcordia LSSGR Sec 6
Dynamic range –36 dBm0 to –3 dBm0 (T-1) or –39 dBm0 to 0 dBm0 (E-1) per tone, configurable by parameter*
Minimum tone duration 40 ms, can be increased with software configuration
Interdigit timing
  • Detects like digits with a >40 ms interdigit delay
  • Detects different digits with a 0 ms interdigit delay
Acceptable twist and frequency variation
  • (T-1) Meets Telcordia LSSGR Sec 6 and EIA 464 requirements
  • (E-1) Meets appropriate ITU-T specifications*
Noise tolerance Meets Telcordia LSSGR Sec 6 and EIA 464 requirements for Gaussian, impulse, and power line noise tolerance
Cut-through
  • (T-1) Local echo cancellation permits 100% detection with a >4.5 dB return loss line
  • (E-1) Digital trunks use separate transmit and receive paths to network
  • Performance dependent on far-end handset’s match to local analog loop
Talk-off
  • Detects less than 20 digits while monitoring Telcordia TR-TSY-000763 standard speech tapes (LSSGR requirements specify detecting no more than 470 total digits)
  • Detects 0 digits while monitoring MITEL speech tape #CM 7291
Global Tone Detection
Tone type Programmable for single or dual
Maximum number of tones Application-dependent
Frequency range Programmable within 300 Hz to 3500 Hz
Maximum frequency deviation Programmable in 5 Hz increments
Frequency resolution ±5 Hz. Separation of dual frequency tones is limited to 62.5 Hz at a signal-to-noise ratio of 20 dB
Timing Programmable cadence qualifier, in 10 ms increments
Dynamic range
  • (T-1) Programmable, default set at –36 dBm0 to –0 dBm0 (single tone), –3 dBm0 (dual tone)
  • (E-1) Programmable, default set at –39 dBm0 to +0 dBm0 per tone
Global Tone Generation
Tone type Generate single or dual tones
Frequency range Programmable within 200 Hz to 4000 Hz
Frequency resolution 1 Hz
Duration 10 ms increments
Amplitude
  • (T-1) –43 dBm0 to –3 dBm0 per tone nominal, programmable
  • (E-1) –40 dBm0 to +0 dBm0 per tone nominal, programmable
MF Signaling (T-1) R1
MF digits 0 to 9, KP, ST, ST1, ST2, ST3 per Telcordia LSSGR Sec 6, TR-NWT-000506 and ITU-T Q.321
Transmit level Complies with Telcordia LSSGR Sec 6, TR-NWT-000506
Signaling mechanism Complies with Telcordia LSSGR Sec 6, TR-NWT-000506
Dynamic range for detection –25 dBm0 to –3 dBm0 per tone
Acceptable twist 6 dB
Acceptable frequency variation Less than ±1 Hz
MF Signaling (E-1) R2
MF digits All 15 forward and backward signal tones per ITU-T Q.441
Transmit level –8 dBm0 per tone, nominal, per ITU-T Q.454; programmable
Signaling mechanism Supports the R2 compelled signaling cycle and non-compelled pulse requirements per ITU-T Q.457 and Q.442
Dynamic range for detection –35 dBm0 to –5 dBm0 per tone
Acceptable twist 6 dB
Acceptable frequency variation Less than ±1 Hz
Call Progress Analysis
Call Progress Analysis
  • Busy tone detection
  • Ring back tone detection
  • Positive voice detection
  • Positive answering machine detection
  • Fax/modem detection
  • Intercept detection
  • Dial tone detection before dialing
Tone Dialing
DTMF digits 0 to 9, *, #, A, B, C, D per Telcordia LSSGR Sec 6, TR-NWT-000506
Frequency variation Less than ±1 Hz
Rate 10 digits/s, configurable by parameter*
Level –7.5 dBm0 per tone, nominal, configurable by parameter*
Pulse Dialing
10 digits 0 to 9
Pulsing rate 10 pulses/s, nominal, configurable by parameter*
Break ratio 60% nominal, configurable by parameter*
Analog Display Services Interface (ADSI)
Analog Display Services Interface (ADSI)
  • FSK generation per Telcordia TR-NWT-000030
  • CAS tone generation and DTMF detection per Telcordia TR-NWT-001273

*Configurable to meet country-specific PTT requirements. Actual specification may vary from country to country for approved products.
