Dialogic D/4PCIUF and D/4PCIU4S Media Boards
Field proven, high performance, 4 port media processing for analog


Dialogic D/4PCIUF and D/4PCIU4S Media Boards

Dialogic Products
JCT Media Boards
Dialogic D/4PCIUFW 4-port Analog Media Board, Loop-Start, PCI
#881-775
Contact us for pricing!
Dialogic D/4PCIU4SW 4-port Analog Media Board, Loop-Start, PCI
#881-703
Contact us for pricing!
Dialogic D/4PCIUFEQ 4-port Analog Media Board, Loop-Start, PCIe
#310-935
Contact us for pricing!
Dialogic D/4PCIU4SEQ 4-port Analog Media Board, Loop-Start, PCIe
#310-936
Contact us for pricing!

Click here to jump to more pricing!

Overview:

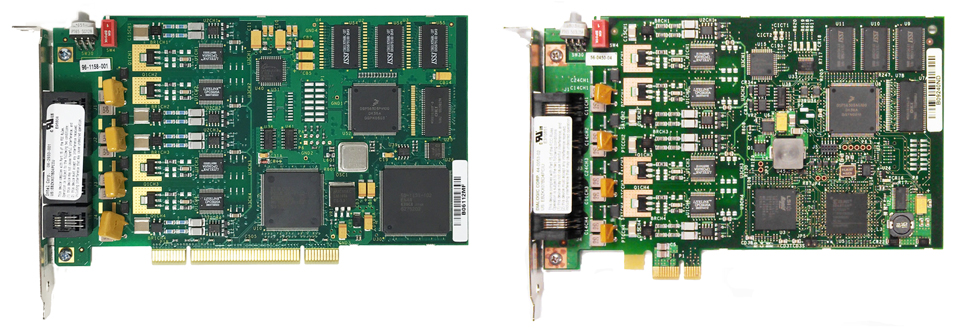

The Dialogic D/4PCIUF (voice + fax) and D/4PCIU4S (voice + speech/ CSP) media boards are 4-port analog PCI or PCI Express half size boards that are part of the family of Dialogic JCT Media Boards.

Dialogic JCT Media Boards – including these models - can be used by developers to provide small- and medium-sized enterprise Computer Telephony (CT) applications that require high-performance voice and fax processing. Among the features and benefits of these boards, and other Dialogic JCT Media Boards, are the following. They use Digital Signal Processor (DSP) voice processing technology, making them well-suited for server-based CT systems under Windows and Linux. They also provide a powerful platform for creating sophisticated Interactive Voice Response (IVR) applications for the small and medium-sized enterprise market segment. Their Caller ID support lets applications, such as IVR, receive calling party information via a telephone trunk line; Caller ID is supported for North America (CLASS protocol), the United Kingdom (CLI protocol), and in Japan (CLIP protocol). Features such as fax and software-based speech recognition processing enable unified messaging applications. They also provide Automatic Gain Control (AGC), so even a weak telephone signal can be recorded and replayed with clarity.

Features and Benefits:


Features Benefits
Supports up to four channels of DSP-based on-board fax (D/4PCIUF models only) Reduces the number of boards per system
Supports up to four channels of continuous speech processing (D/4PCIU4S models only) Provides a flexible speech processing technology, which, when coupled with efficient drivers, off-loads critical real-time signal processing in speech-enabled applications to on-board DSPs. Reduces system latency, increases recognition accuracy, and improves overall system response time for speech solutions.
Separate models available with Universal PCI or PCI Express edge connector Universal PCI form factor compatible with 3.3 V and 5.0 V bus signals; and PCI Express form factor compatible with x1 lane configuration or higher.
A variety of country-specific approvals Expands an application’s ability to serve several global market segments
Supports G.726 and GSM coders Implements unified messaging applications that meet VPIM standards
Voice coding on a channel-by-channel basis Allows for a beneficial tradeoff between disk storage and voice quality
Half-size PCI or PCI Express form factor Cost-effective systems can be built using the up-to-date Commercial Off-The-Shelf (COTS) chassis

Specifications:


Technical Specifications
Number of ports 4
Maximum boards per system 16
Analog network interface On-board loop start interface circuits
Control microprocessors Intel 80C186 @ 34.8MHz
Digital signal processor Freescale DSP56303 @ 100 MHz, with 128Kx24 private
Supported operating systems Windows; Linux
CSP Yes
FAX Yes
Signaling Analog loop start
Host Interface PCI PCI Express
Bus compatibility Complies with PCI-SIG Bus Specification, Rev. 2.2 Complies with PCI-SIG PCI Express Base Specification, Rev. 1.1; x1 or higher compatible
PCI bus speed 33 MHz maximum 33 MHz maximum
Shared memory 32 KB pagee 32 KB page
Base addresses Selected by PCI or PCI Express BIOS Selected by PCI or PCI Express BIOS
Interrupt 1 IRQ (INTA) shared by Dialogic JCT Media Boards Legacy INTA emulation shared by Dialogic JCT PCIe Media Boards
Physical Dimensions
Dimensions Standard-height, half-length form factor
6.88 in. (17.46 cm) long
0.75 in. (1.875 cm) wide
3.85 in. (9.625 cm) high (excluding edge connector)
Power Requirements PCI PCI Express
+5 VDC 650 mA -
+12 VDC - 450 mA maximum
Environmental Requirements
Operating temperature +32°F (0°C) to +122°F (+50°C)
Storage temperature -4°F (–20°C) to 158°F (+70°C)
Humidity 8% to 80% noncondensing
Telephone Interface
Trunk type Loop start
Ground start for inbound applications with AC ringing
Impedance 600 Ohm (nominal). Matching complex impedance specified in TBR-21 for D/4PCIU-EURO
Ring detection 15 Vrms minimum, 15 Hz to 68 Hz (each configurable by parameter*)
Loop current range 20 mA to 120 mA, DC (polarity insensitive)
Crosstalk coupling –80 dB at 3 kHz channel-to-channel
Connector 4 RJ-11
Springware/JCT Technical Specifications
Facsimile (available on D/4PCIUF models only)
Fax compatibility
  • ITU-T G3 compliant (T.4, T.30)
  • ETSI NET/30 compliant
Data rate
  • 14.4 kbit/s (v.17) send
  • 9.6 kbit/s (v.29) receive
Variable speed selection Automatic step-down to 12,000 b/s, 9600 b/s, 7200 b/s, 4800 b/s, and lower
Transmit data modes
  • Modified Huffman (MH)
  • Modified Read (MR)
Receive data modes MH, MR
File data formats Tagged Image File Format-Fax (TIFF-F) for transmit/receive MH and MR
ASCII-to-fax conversion
  • Host-PC-based conversion
  • Direct transmission of text files
  • Windows fonts supported
  • Page headers generated automatically
Error correction Detection, reporting, and correction of faulty scan lines
Image widths
  • 1728 pixels
  • 2048 pixels
  • 2432 pixels
Image scaling Automatic horizontal and vertical scaling between page sizes
Polling modes
  • Normal
  • Turnaround
Image resolution
  • Normal (203 pels/in. × 98 lines/in., 203 pels/2.54 cm × 98 lines/2.54 cm)
  • Fine (203 pels/in. × 196 lines/in., 203 pels/2.54 cm × 196 lines/2.54 cm)
Fill minimization Automatic fill bit insertion and stripping
Audio Signal
Receive range –50 dBm to –9 dBm (nominal), for average speech signals† configurable by parameter*
Automatic gain contro
  • Application can enable/disable
  • Above –30 dBm results in full scale recording, configurable by parameter*
Silence detection –40 dBm nominal, software adjustable*
Transmit level (weighted average) –9 dBm nominal, configurable by parameter*
Transmit volume control 40 dB adjustment range, with application-definable increments, capped according to country-specific regulations
Frequency Response
24 kbit/s 300 Hz to 2600 Hz ±3 dB
32 kbit/s 300 Hz to 3400 Hz ±3 dB
48 kbit/s 300 Hz to 2600 Hz ±3 dB
64 kbit/s 300 Hz to 3400 Hz ±3 dB
Audio Digitizing
13 kbit/s GSM 6.10 @ 8 kHz sampling
24 kbit/s 4-bit OKI ADPCM @ 6 kHz sampling
32 kbit/s 4-bit OKI ADPCM @ 8 kHz sampling
G.726 @ 8 kHz sampling
48 kbit/s G.711 µ-law PCM @ 6 kHz sampling
64 kbit/s G.711 µ-law PCM @ 8 kHz sampling
Digitization selection Selectable by application on function call-by-call basis
Playback speed control
  • Pitch controlled
  • Available for 24 kbit/s and 32 kbit/s data rates
  • Adjustment range: ±50%
  • Adjustable through application or programmable DTMF control
Wave Audio
Wave Audio Record/Play 11 kHz linear PCM, 8-bit mono mode (available only when running Windows)
DTMF Tone Detection
DTMF digits 0 to 9, *, #, A, B, C, D per Telcordia LSSGR Sec 6
Dynamic range –38 dBm0 to –3 dBm0 per tone, configurable by parameter*
Minimum tone duration 40 ms, can be increased with software configuration
Interdigit timing
  • Detects like digits with a >40 ms interdigit delay
  • Detects different digits with a 0 ms interdigit delay
Twist and frequency variation Meets Telcordia LSSGR Sec 6 and EIA 464 requirements
Acceptable twist 10 dB
Signal/noise ratio 10 dB (referenced to lowest amplitude tone)
Noise tolerance Meets Telcordia LSSGR Sec 6 and EIA 464 requirements for Gaussian, impulse, and power line noise tolerance
Cut-through Detects down to –36 dBm per tone into 600 Ohm load impedance
Talk-off
  • Detects less than 20 digits while monitoring Telcordia TR-TSY-000763 standard speech tapes (LSSGR requirements specify detecting no more than 470 total digits)
  • Detects 0 digits while monitoring MITEL speech tape #CM 7291
Global Tone Detection
Tone type Generate single or dual tones
Maximum number of tones Application-dependent
Frequency range Programmable within 300 Hz to 3500 Hz
Maximum frequency deviation Programmable in 5 Hz increments
Frequency resolution Less than 5 Hz
Note: Certain limitations exist for dual tones closer than 60 Hz apart
Timing Programmable cadence qualifier, in 10 ms increments
Dynamic range Programmable, default set at –6 dBm0 to –3 dBm0 per tone
Global Tone Generation
Tone type Generate single or dual tones
Frequency range Programmable within 200 Hz to 4000 Hz
Frequency resolution 1 Hz
Duration 10 ms increments
Amplitude Programmable within –43 dBm to –3 dBm per tone
MF Signaling
MF digits 0 to 9, KP, ST, ST1, ST2, ST3 per Telcordia LSSGR Sec 6, TR-NWT-000506 and ITU-T Q.321
Transmit level Complies with Telcordia LSSGR Sec 6, TR-NWT-000506
Signaling mechanism Complies with Telcordia LSSGR Sec 6, TR-NWT-000506
Dynamic range for detection –25 dBm0 to –3 dBm0 per tone
Acceptable twist 6 dB
Acceptable frequency variation Less than ±1 Hz
Call Progress Analysis
Call Progress Analysis
  • Busy tone detection
  • Ring back tone detection
  • Positive voice detection
  • Positive answering machine detection
  • Fax/modem detection
  • Intercept detection
  • Dial tone detection before dialing
Tone Dialing
DTMF digits 0 to 9, *, #, A, B, C, D per Telcordia LSSGR Sec 6, TR-NWT-000506
MF digits 0 to 9, KP, ST, ST1, ST2, ST3
Frequency variation ±0.5% of nominal frequency
Rate 10 digits/s, configurable by parameter*
Level –5 dBm per tone, nominal, configurable by parameter*
Pulse Dialing
10 digits 0 to 9
Pulsing rate
  • 10 pulses/s, nominal
  • 20 pulses/s for Japan, configurable by parameter*
Break ratio 60% nominal, configurable by parameter*
Analog Caller Identification
Applicable standards
  • Telcordia TR-NWT-000030
  • Telcordia TR-NWT-000031
  • Telcordia TR-NWT-001188
  • TAS T5 PSTN1 ACLIP: 1994 (Singapore)
  • British Telecom SIN 242 (Issue 01)
  • British Telecom SIN 227 (Issue 01)
  • Japan NTT CLIP
Modem standard Bell 202 or V.23, serial 1200 bits/sec (simplex FSK signaling)
Receive sensitivity –48 dBm to –1 dBm
Noise tolerance Minimum 18 dB SNR over 0 dBm to –48 dBm dynamic range
Data formats Single Data Message (SDM) and Multiple Data Message (MDM) formats via API calls and commands
Impedance
  • 600 Ohm for D/PCIUF
  • Matching complex impedance specified in TBR-21 for D/4PCIUF-EURO.
Message formats ASCII or binary SDM, MDM message content
Analog Display Services Interface (ADSI)
Analog Display Services Interface (ADSI)
  • FSK generation per Telcordia TR-NWT-000030
  • CAS tone generation and DTMF detection per Telcordia TR-NWT-001273

* Analog levels: 0 dBm0 corresponds to a level of +3 dBm at tip-ring analog point. Values vary depending on country requirements; contact your account manager
