Overview:

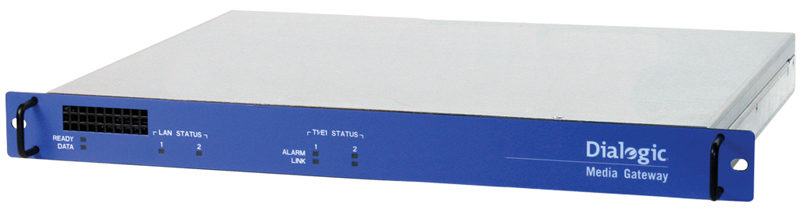

The Dialogic 2000 Media Gateway Series (DMG2000 Gateway) is set of turnkey appliances that seamlessly merges traditional PSTN technology with IP networks. These economical gateways help consolidate typically separate voice and data networks and provide new and differentiated communication services. Without making radical, disruptive, and expensive upgrades to existing PBX equipment, service providers and enterprises can realize the benefits of a converged voice and data network with these gateways.

The DMG2000 Gateways can be installed and configured “plug and play,” reducing the total cost of ownership. Operations, Administration, and Maintenance (OA&M) features, such as network alarm events and remote management enabled by a user-friendly web interface, along with advanced diagnostics and administration tools, make the installation and maintenance of these appliances quick and easy.

The cost of the DMG2000 Gateways makes them well suited for enterprises interested in deploying a variety of applications such as PBX extension, remote office connectivity, long-distance consolidation, call centers, and IP media servers. Available in a 19-inch standard rack mountable chassis, these appliances are also beneficial for service providers offering hosted IP-PBX, IP Centrex, and enhanced messaging servers.

Applications

  • Centralized VoIP and FoIP application servers, including IP-based voice mail and unified messaging
  • Interactive voice response (IVR) and announcements
  • IP PBX
  • Voice over Internet Protocol (VoIP) extension to branch offices
  • Contact centers

Save Time, Money — and Existing PBX Equipment

Many enterprises today have legacy PBX equipment installed on their premises. These enterprises want to cut their communications costs by implementing a VoIP solution, but wish to retain their investment in legacy equipment. Because these enterprises have a diverse base of PBX equipment, solution providers need a product that will help them address this wide customer base with a single, simple solution.

The DMG2000 Gateways have been tested for interoperability with legacy PBXs from vendors such as Alcatel, Avaya, Mitel, NEC, Nortel, and Siemens. This testing lets solution providers focus on customer applications rather than integration efforts with legacy PBXs.

In addition to providing IP connectivity, the DMG2000 Gateways support key supplementary services such as call transfer, call forwarding, call hold, message waiting indicator (MWI), and call party information on most T1/E1 protocols including CAS, QSIG, Euro ISDN, NI2, DMS100, and 5ESS, enabling customers to retain application-critical PBX functionality in the new VoIP environment.

The dual- and quad-density “S” models (DMG2060DTISQ and DMG2120DTISQ respectively) provide failover relays and expanded call routing options, allowing connectivity to, and flexible routing between, the PSTN, IP networks, and TDM PBX networks. Possible configurations include TDM-to-TDM and TDM-to-IP with survivability support.

Advanced Voice Features Provide Superior Caller Experience

The extensive features of the DMG2000 Gateways can help those who are building reliable, high-quality VoIP applications. The DMG2000 Gateways support Any-to-Any call routing for maximum flexibility. The Gateways provide the interoperability needed for high-quality media streaming with a wide variety of industry-standard IP endpoints by supporting advanced coders including:

  • G.711 (packet size 10 ms, 20 ms, and 30 ms)
  • G.723.1
  • G.729ab

Echo cancellation is essential for packet-switched networks to carry voice traffic successfully. The DMG2000 Gateways conform to ITU G.168 echo cancellation with a tail length up to 128 ms. Voice quality is further enhanced with features such as comfort noise generation, silence detection, and adaptive jitter buffering.

The DMG2000 Gateways have QoS features, including type of service (TOS)/IP precedence, and DiffServ, providing a low-latency, high-reliability path for sensitive voice traffic through today’s networks. In addition, the Gateways support advanced call progress analysis on all channels.

Features and Benefits:


Features Benefits
Provides an interconnect between legacy PBXs and various IP endpoints Enables communication between a circuit-switched telephony network and Session Initiated Protocol (SIP) compatible remote devices such as IP voice mail, unified messaging applications, and IP phones
Available in single, dual, and quad density T1/E1 rack mount appliances Offers a range of product densities to fit the needs of a variety of applications and business sizes
Compatible with a variety of popular PBX manufacturers including Avaya, Mitel, NEC, Nortel, and Siemens Protects investment in legacy telecommunications equipment and allows a phased migration to IP
Support for IP load balancing and IP fault tolerance Allows the ability for inbound (TDM-to-IP) calls to round-robin between available media servers and automatically routes calls away from unresponsive media or proxy servers
Supports supplementary services on CAS, QSIG, Euro ISDN, NI2, DMS100 and 5ESS protocols, enabling call transfer, call hold, MWI, and call party information Helps retain key supplementary services in the new IP environment
Supports configuration via serial, telnet, and a web browser including context-sensitive Help Easy to install, configure, debug, and maintain
IP security features include TLS, SRTP, and HTTPS Enables secure communications for SIP messages via TLS, media streams via SRTP, and web interfaces via HTTPS
Support for TDM-to-TDM routing on dual- and quad-density “S” models with survivability capabilities Allows flexible deployment and survivability; options include IP failover to TDM circuits and PSTN-to-PBX or PSTN-to-IP routing
Supports Any-to-Any call routing Allows for routing of calls from TDM-to-SIP, SIP-to-TDM, TDM-toTDM, and SIP-to-SIP.

Configurations:

The DMG2000 Gateways provide a cost-effective way to connect various IP end points to the circuit-switched network (see Figure 1), eliminating the need to swap out legacy PBXs and helping to protect telecom investment.

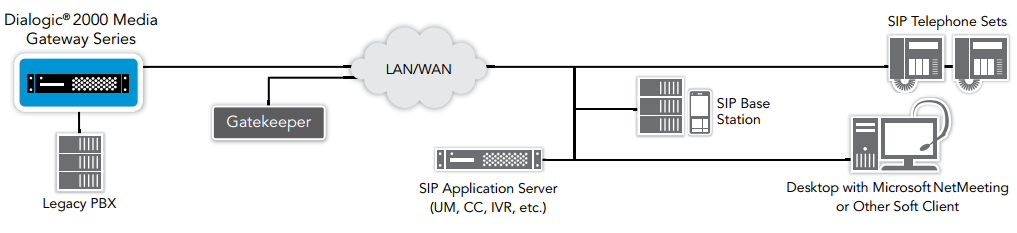

Figure 1. Bridge the Gap Between PSTN and IP End Points
Figure 1. Bridge the Gap Between PSTN and IP End Points

The DMG2000 Gateways - along with Dialogic PowerMedia Host Media Processing Software - support the development of cost-effective IP media servers accessible from both PSTN and IP networks (see Figure 2). IP media servers can provide a central and efficient server in existing Time Division Multiplex (TDM) voice infrastructures by servicing remote locations via an IP network.

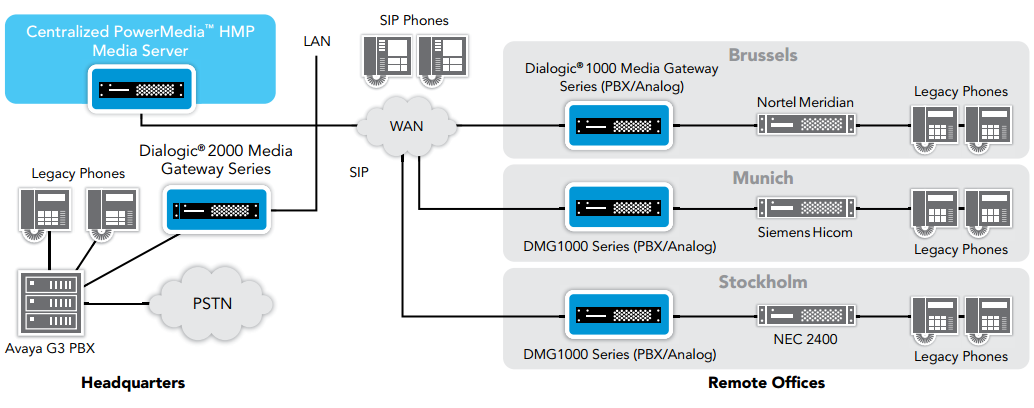

Figure 2. Converged IP Media Server Architecture
Figure 2. Converged IP Media Server Architecture

Media gateways help service providers and enterprises offer cost-saving voice, data, and multimedia convergence services and solutions. One such solution is an application for telecommuters.

The number of employees working from home on a permanent or periodic basis continues to rise. These employees need full access to company voice and data services. By installing a DMG2000 Gateway (see Figure 3) at a corporate office site, employees working from home offices can have the same telephony experience as their counterparts who are working in the corporate office itself. They can make and receive calls and access other features such as unified messaging from home, just as if they were in the office. Their office extension can be “bridged” onto a Gateway port so their “phone” rings, no matter where they are working. This enhances productivity, reduces costs, and improves both customer and employee satisfaction.

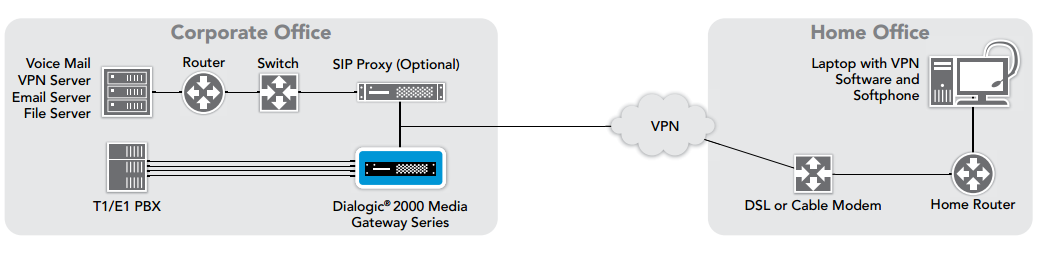

Figure 3. Next-generation Application Solutions — Telecommuting
Figure 3. Next-generation Application Solutions — Telecommuting

The DMG2000 Gateway “S” models can be used for SIP trunking, PSTN toll bypass, and other access gateway applications because of their TDM-to-TDM routing capability, which is included along with traditional SIP-to-TDM and TDM-to-SIP routing. The addition of failover relays for direct TDM-to-TDM connectivity in case of power failures or IP network issues provides a survivable telephony connection as well. For an example configuration, see Figure 4.

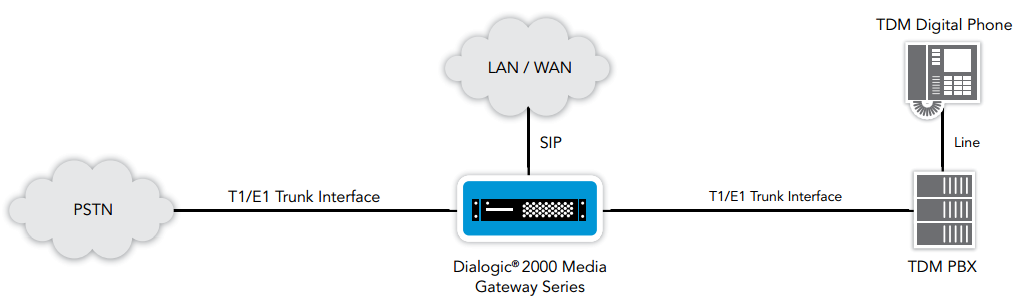

Figure 4. Access Gateway with Survivability Capabilities
Figure 4. Access Gateway with Survivability Capabilities

Specifications:


Technical Specifications DMG2030DTI DMG2060DTIS DMG2120DTIS
TDM Port Density 1 T1 or 1 E1 2 T1 or 2 E1 4 T1 or 4 E1
IP Channel Density 30 60 120
Connectors RJ-45 jacks
VoIP Protocols
  • 10/100 BaseT Ethernet LAN port
  • Connector 1 shielded female RJ-45 jack for LAN
FoIP Protocol
  • Web browser with context-sensitive Help facility
  • Telnet
  • BOOTP client and TFTP client built-in
  • SNMP v2 read-only for alarm reporting
Features
Quality of Service Type of service (ToS)/IP precedence DiffServ
Call Routing Any-to-Any call routing (TDM-to-SIP, SIP-to-TDM, TDM-to-TDM, and SIP-to-SIP)
IP Security
  • TLS for SIP messages
  • SRTP for media stream
  • HTTPS for web interface
Power Requirements
Line voltage 90VAC to 264VAC
Frequency 47 Hz to 63 Hz
Physical Dimensions
Length 1.68 in. (4.27 cm)
Width 19 in. (48.26 cm)
Height 14.2 in. (36.07 cm)
Weight 11.1 lbs (5.03 kg)
Environmental Requirements
Operating temperature +32°F to +122°F (0°C to 40°C)
Non-operating temperature –4°F to +158°F (–20°C to 70°C)
Protocol Support
Serial
  • MCI
  • MD-110
  • SMDI
T-1 ISDN
  • 5ESS
  • DMS100
  • NI2
  • QSIG
T-1 CAS
  • E&M
  • GroundStart
  • LoopStart
E-1
  • EuroISDN
  • QSIG
VoIP
  • Call transfer/call hold/message waiting indicator
  • SIP per RFC 3261
  • RTP/RTCP for delivery of voice
FoIP T.38 FoIP emulating units transcode fax from T.30 fax protocol, supporting V.21, V.27, V.29, V.17, and V.34* modulation schemes, to T.38 for transmission over a packet network
Security
  • SRTP
  • HTTPS
  • TLS
Support
Voice Support
  • G.711 µ-law and A-law
  • G.723.1
  • G.729ab
  • Silence suppression with comfort noise
  • Dynamic jitter buffer G.168 automatic echo cancellation
  • Call Progress Analysis (CPA), including Positive Voice Detection, Positive Answering Machine Detection (PAMD), DTMF detection, and fax tone detection

Documentation:

Download the Dialogic 2000 Media Gateway Series Datasheet (.PDF)
