Overview:

High Performance Connectivity from Application to SS7/SIGTRAN Network

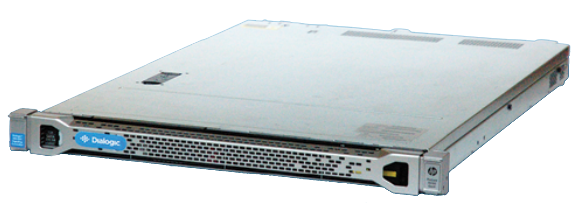

Dialogic DSI Signaling Interface Unit (DSI SIU) is a scalable, high performance telecommunications signaling controller, providing connectivity between the core SS7/SIGTRAN network and multiple distributed application servers. The DSI SIU can enable application developers to deliver high throughput signaling applications to market quickly and cost-effectively using standard IP connectivity. The DSI SIU also supports a wide range of call control and transaction-based signaling protocols, allowing worldwide deployment in both fixed and mobile networks.

Enables Broad Range of Applications

Applications which can be deployed with DSI SIU include standard network elements, such as SMS gateways, SMSC, SMS Routers, USSD gateways, GMLC and EIR in addition to customized applications such as Lawful Intercept, Welcome Roamer, or Missed Call Alerts. The DSI SIU can also be integrated into solutions with Dialogic PowerMedia Software Products.

Figure 1 provides an example of how an SIU based on Dialogic DSI G51 Signaling Controller can be deployed in a service provider network.

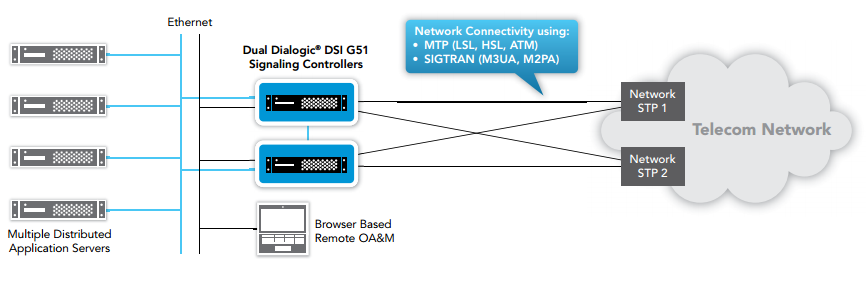

Figure 1. Dialogic DSI G51 Signaling Controllers in a Service Provider Network
Figure 1. Dialogic DSI G51 Signaling Controllers in a Service Provider Network

SCCP Router and Signaling Gateway

The DSI SIU can optionally be configured as an SCCP Router or Signaling Gateway, providing high performance connectivity solutions for mobile networks.  DSI SIU supports the ability to flexibly route messages (MTP or M3UA) or send traffic through the SIU SCCP process for Global Title Translation.

Offers High Availability and Flexible OA&M

The DSI SIU offers carrier-ready fault resiliency, occupies a small (1U) footprint, and offers dual hot-swappable AC power supplies. It supports standard operations, administration, and maintenance (OA&M) interfaces via a web browser, a command line interface, and SNMP, allowing easy integration into automated, centralized management systems.

Features and Benefits:


Features Benefits
Scales from 8 Low Speed Links (LSL) up to 248 LSL or 8 High Speed Links (HSL); HSL can be Q.703 Annex A or ATM Allows cost-effective use of a common platform across a wide range of deployments; allows scaling of platform capacity over time
SIGTRAN capacity (M3UA/M2PA) scales from 8 to 512 TDM link equivalents using flexible throughput-based licensing Lets provisioned capacity match deployment needs at installation
Worldwide protocol support (ITU-T, ANSI, China, Japan, etc.); wide range of protocols for both telephony-based (ISUP and BICC) and transaction-based operation (SCCP, TCAP, MAP, ANSI- 41, INAP, and CAMEL) as well as Global Title Translation and SS7 protocol monitoring Facilitates global deployments and the ability to configure protocol variants at runtime
Compact 1U form factor with dual hot swappable AC power supplies Permits excellent link density in a small footprint for required deployment options and carrier-ready resilience
Supports both browser and command line interface for OA&M in addition to SNMP and “lights-out” management Facilitates comprehensive, user-friendly remote management using standard tools
Built-in traffic measurement, event logging, and protocol tracing (including PCAP format), backed by fully documented internal interfaces between protocol layers. Provides good visibility of utilization and traffic levels and facilitates fast resolution of network protocol issues
Event-driven asynchronous message-based Application Programming Interface that works seamlessly with other Dialogic Distributed Signaling Interface (DSI) Components Provides user access to low-level protocol parameters, allowing flexibility for application development under Linux, Solaris, or Windows

Specifications:


Configurations DSI-G51
Form factor 1U Rack Mount Server
SS7 T1/E1 interface boards Can be supplied without signaling boards (DSI-G51A00), with one low density board (DSI-G51AL1), with one high capacity board (DSI-G51AM1) or two high capacity boards (DSI-G51AM2)
Configurations DSI-G51AL1 DSI-G51AM1 DSI-G51AM2
T1/E1 ports 4 T1 or 4 E1 4 individually selectable T1/E1 8 individually selectable T1/E1
SS7 Low Speed Links Up to 16 Up to 124 Up to 248
SS7 High Speed Links (Q.703 Annex A) N/A Up to 4 Up to 8
ATM High Speed Links per board. N/A Up to 4 Up to 8
Maximum SS7 links per unit 248
Maximum SS7 link sets per unit 120
Maximum M2PA links per unit 256
Maximum number of SS7 routes 4096
Number of separate network contexts 4
Maximum number of SIGTRAN associations 256
10/100/1000Mbit/sec Ethernet interfaces 6
Number of hosts supported 128
Supported host operating systems Linux, Solaris (x86 or SPARC), and Windows
Calls per second 20,000 (provisional figure)
Transactions per second (TCAP, MAP, ANSI-41, or INAP/CAMEL) 30,000 (provisional figure)
MTBF (Using Telcordia method at 40°C) 191,000 to 367,000 hours, depending on type and number of boards in chassis.
T1/E1 Interfaces
Pulse mask
  • T1: ANSI T1.403
  • E1: ITU-T G.703
Data rate
  • T1: 1544 kbps ± 50 ppm
  • E1: 2048 kbps ± 50 ppm
Frame format
  • T1: D4, ESF, and ESF-CRC6
  • E1: E1 and E1-CRC4
Line codes HDB3, AMI, B8ZS
Connector type RJ-48C
Power
Input voltage 90 VAC to 240 VAC
Input power (fully equipped) 150 W
Frequency range 47 Hz - 63 Hz
Physical Dimensions
Height 1.69 in. (4.3 cm)
Width 17.11 in. (43.5 cm)
Depth 23.92 in. (60.8 cm)
Weight – fully equipped 28.7 lbs (13 kg)
Environmental
Operating temperature +41°F (+5°C) to +104°F (+40°C)
Storage temperature –22°F (–30°C) to +140°F (+60°C)
Safety and EMC
Warranty 3-years

Documentation:

Download the Dialogic DSI Signaling Interface Unit Datasheet (.PDF)
