Dialogic DSI Signaling Transfer Point
Based on Dialogic DSI G51 Signaling Controller


Dialogic DSI Signaling Transfer Point

Dialogic Products
Dialogic DSI Signaling Transfer Point
Dialogic DSI-G51A00, Signaling Controller, AC, 0 Boards
#312-001
Contact us for pricing!
Dialogic DSI-G51AL1, Signaling Controller, AC, 1 SS7LD Board
#312-002
Contact us for pricing!
Dialogic DSI-G51AM1, Signaling Controller, AC, 1 SS7MD Board
#312-003
Contact us for pricing!
Dialogic DSI-G51AM2, Signaling Controller, AC, 2 SS7MD Boards
#312-004
Contact us for pricing!

Click here to jump to more pricing!

Overview:

A compact, cost-effective telecommunications signaling platform!

Dialogic DSI Signaling Transfer Point (DSI STP) is a compact, cost-effective telecommunications signaling platform, providing core network connectivity and routing between multiple networks using both SS7 over E1/T1 and SIGTRAN over IP. The DSI STP supports comprehensive Screening capabilities in addition to routing at the MTP and SCCP levels and Global Title Translation. The DSI STP features a browser-based graphical user interface (GUI) for all operations, administration, maintenance and provisioning functions. The GUI supports dynamic configuration, status and alarm monitoring, interactive control and a wide range of diagnostic capabilities. A multi-user environment complete with password security, configurable user privileges and full audit trail ensures adherence to chosen security policy. The DSI STP supports multiple protocol variants allowing worldwide deployment in both fixed and mobile networks.

Resiliency and Scalability

The DSI STP occupies a small (1U) footprint, and offers dual hot-swappable AC power supplies. It can be deployed as a stand-alone unit or in a dual active/active configuration for resilience and high availability. For larger deployments multiple servers can be stacked to provide a distributed STP with no single point of failure.

Multi-Purpose Signaling Gateway

In addition to operation as a pure Signaling Transfer Point, the DSI STP addresses a wide range of interworking needs. As an SCCP Router it provides the Signaling Point Relay (SPR) capability to pass messages between networks, routing based on DPC, SSN or Global Title. It provides Load Balancing, Global Title Translation and Network Topology Hiding. As an STP it provides routing of messages based on any field in the MTP Routing Label and supports policing to prevent unauthorized use of signaling relationships. As a SIGTRAN Gateway it provides high density interworking between TDM and SIGTRAN transport layer protocols with the ability to aggregate or separate traffic flows based on MTP and SCCP routing labels.

Figure 1 provides an example of how the Dialogic DSI G51 Signaling Controller can be deployed as a Signaling Transfer Point in a typical network configuration.

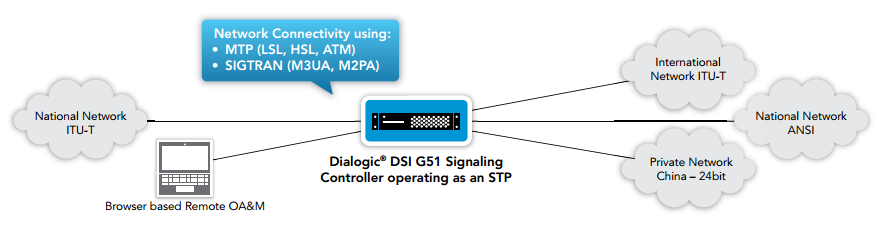

Figure 1. Dialogic DSI G51 Signaling Controller operating as an STP
Figure 1. Dialogic DSI G51 Signaling Controller operating as an STP

Features and Benefits:


Features Benefits
Wide range of supported interfaces including E1 / T1, SS7 Low Speed Links (LSL), High Speed Links (HSL); ATM and SIGTRAN (M3UA/M2PA) over IPv4 or IPv6 Supports interworking between wide range of legacy TDM equipment with ability to utilize IP for new connectivity
Worldwide protocol support (ITU-T, ANSI, China, Japan, etc.) for both telephony-based and transaction-based operation with SCCP Global Title Translation Facilitates global deployments and the ability to configure protocol variants at runtime
Screening and routing based on OPC, DPC, SCCP Called & Calling Address, SSN, MAP Operation Code and others Puts the operator in control of the way the network is used
Supports both browser and command line interface for OA&M in addition to SNMP and “lights-out” management Facilitates comprehensive, user-friendly remote management using standard tools
Built-in periodic traffic measurements, event logging and protocol tracing (including PCAP format), backed by fully documented internal interfaces between protocol layers Provides good visibility of utilization and traffic levels and facilitates fast resolution of network protocol issues
Ability to interwork between different network types including National/International, ETSI/ANSI and support for Alias Point Codes Resolves basic interworking needs without the need for external protocol conversion
Flexible capacity-based licensing Allows increased platform capacity to be added over time to match deployment needs

Specifications:


Configurations DSI-G51
Form factor 1U Rack Mount Server
SS7 T1/E1 interface boards Can be supplied without signaling boards (DSI-G51A00), with one low density board (DSI-G51AL1), with one high capacity board (DSI-G51AM1) or two high capacity boards (DSI-G51AM2)
Configurations DSI-G51AL1 DSI-G51AM1 DSI-G51AM2
T1/E1 ports 4 T1 or 4 E1 4 individually selectable T1/E1 8 individually selectable T1/E1
SS7 Low Speed Links Up to 16 Up to 124 Up to 248
SS7 High Speed Links (Q.703 Annex A) N/A Up to 4 Up to 8
ATM High Speed Links per board. N/A Up to 4 Up to 8
Maximum SS7 links per unit 248
Maximum SS7 link sets per unit 120
Maximum M2PA links per unit 256
Maximum number of SS7 routes 4096
Number of separate network contexts 4
Maximum number of SIGTRAN associations 256
10/100/1000Mbit/sec Ethernet interfaces 6
Throughput (MSU/sec) 60,000
Global Title Translation throughput (GTT/sec) 10,000
Global Title Capacity 30,000
MTBF (Using Telcordia method at 40°C) 191,000 to 367,000 hours, depending on type and number of boards in chassis.
T1/E1 Interfaces
Pulse mask
  • T1: ANSI T1.403
  • E1: ITU-T G.703
Data rate
  • T1: 1544 kbps ± 50 ppm
  • E1: 2048 kbps ± 50 ppm
Frame format
  • T1: D4, ESF, and ESF-CRC6
  • E1: E1 and E1-CRC4
Line codes HDB3, AMI, B8ZS
Connector type RJ-48C
Power
Input voltage 90 VAC to 240 VAC
Input power (fully equipped) 150 W
Frequency range 47 Hz - 63 Hz
Physical Dimensions
Height 1.69 in. (4.3 cm)
Width 17.11 in. (43.5 cm)
Depth 23.92 in. (60.8 cm)
Weight – fully equipped 28.7 lbs (13 kg)
Environmental
Operating temperature +41°F (+5°C) to +104°F (+40°C)
Storage temperature –22°F (–30°C) to +140°F (+60°C)
Safety and EMC
Warranty 3-years

Documentation:

Download the Dialogic DSI Signaling Transfer Point Datasheet (.PDF)
