Dialogic Eiconcard C Series
Multi-protocol Serial Boards, Connectivity Software & Development Tools


Dialogic Eiconcard C Series

Dialogic Products
Eiconcard Adapters

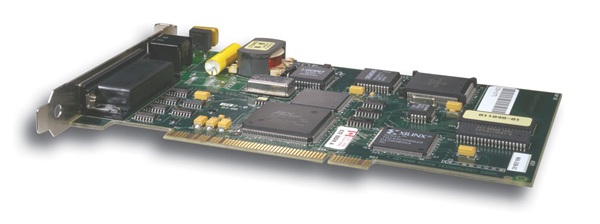

Dialogic Eiconcard C91 V2
PCI, Ports: V.24 WAN and ISDN S/T
#306-231
Contact us for pricing!
Dialogic Eiconcard C91 PCIe
PCIe,Low Profile, Ports: V.24 WAN and ISDN S/T, optional full height bracket
#306-406
Contact us for pricing!

Click here to jump to more pricing!

Overview:

The Eiconcard C Series are intelligent multi-protocol traditional wide-area network (WAN) interface boards for PCI / PCIe based workstations. The C Series of synchronous serial interface adapters are targeted for X.25, HDLC,PPP or SNA/SDLC implementations.  The Eiconcard C Series offers connectivity through V.24 and/or ISDN ports, supporting line speeds of up to 64 Kbps and 128 Kbps respectively.

The Eiconcard C Series allows you to connect over a variety of traditional WAN protocols such as X.25, Frame Relay, PPP, SDLC and HDLC, over leased lines, dial-up lines or ISDN lines. The Eiconcard C Series offloads the server from low level protocol processing tasks, resulting in a saving of server CPU resources.

The Eiconcard C Series works in conjunction with Dialogic software, and is supported by Dialogic development tools and third-party products. The Eiconcard C Series offers a comprehensive warranty of 5 years.

Features and Benefits:

  • Multi-protocol
  • Worlwide certification
  • World class protocol interoperability
  • On-board CPU
  • V.24 and ISDN port
  • PCI or PCIe low profile

Specifications:


Eiconcard C91 Technical Specifications
Hardware
  • Motorola 68302 microprocessor @ 15.36 MHz
  • 512KB FLASH & 512KB DRAM
  • Bus Type: PCI 2.1 32bit / 33MHz (5V)
  • Plug and Play
  • One V.24 connector
  • One ISDN S/T interface
Supported Operating Systems
  • Windows 2000
  • Windows XP, Server 2003, Windows 7, Server 2008 and 2008R2
  • Linux - Redhat Enterprise Linux and SUSE Linux Enterprise Server
Serial Interface
  • Autodetect cable interface
  • V.24 DB-25 · CCITT V.24 Signaling
  • CCITT V.28 Electrical
  • CCITT X.21bis Electrical and signaling
  • EIA RS-232-C Electrical and signaling
Warranty 5 year warranty
Environmental Requirements
  • Operating temperature: 0°C to +50°C
  • Operating humidity: 5% to 90% (non-condensing)
  • Barometric operating pressure: 86 to 106 kPascals
  • Maximum tolerance in power supply variation: +5% to -5%
  • Storage temperature: -20°C to +70°C
Certifications
  • European Council Directive 73/23/EEC and 89/336/EEC
  • European Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.
  • EN 60950:2000
  • EN 55022:1998
  • EN 55024:1998 including: EN 61000-4-2:1995, EN 61000-4-3:1996, EN 61000-4-4:1995, EN 61000-4-5:1995, EN 61000-4-6:1996 and EN 61000-4-11:1994.span>
  • TIA-968 (FCC Part 68)
  • FCC Part 15 Class B
  • Industry Canada CS03 Issue 8
  • Industry Canada ICES-003 (covered per FCC part 15)
  • AS/NZS 3548 – Australia EMI (covered per EN 55022)
  • AS/NZS 60950 – Australia safety
  • TS031? Australia requirements for ISDN basic access
Eiconcard C91 V2 Technical Specifications
Hardware
  • MCP850 protocol processor
  • 512KB RAM
  • Bus Type: PCI 2.2 32bit / 66MHz (3V PCI-X compatible)
  • Plug and Play
  • One V.24 connector
  • One ISDN S/T interface
Supported Operating Systems
  • Windows 2000
  • Windows XP, Server 2003, Windows 7, Server 2008 and 2008R2
  • Linux - Redhat Enterprise Linux and SUSE Linux Enterprise Server
Software Features
  • Automatic hardware detection
  • Remote management with SNMP
  • Winsock X.25 Support
  • X3 PAD Support
  • WAN Mini-port Driver for PPP over X25
  • Microsoft Host Integration Server
  • LAN Emulation driver for IP over X.25
  • Support Microsoft Exchange Server
Serial Interface
  • V.24 DB-25 · CCITT V.24 Signaling
  • CCITT V.28 Electrical
  • CCITT X.21bis Electrical and signaling
  • EIA RS-232-C Electrical and signaling
Warranty 5 year Warranty
Environmental Requirements
  • Operating temperature: 0°C to +60°C
  • Operating humidity: 5% to 90% (non-condensing)
  • Barometric operating pressure: 86 to 106 kPascals
  • Maximum tolerance in power supply variation: +5% to -5%
  • Storage temperature: -40°C to +70°C
Certifications
  • EN 60950:2000
    Safety Information Technology, including electrical business equipment
  • EN 55022:1998 Class B: Information technology equipment –Radio disturbance characteristics- Limits and methods of measurement
  • EN 55024: 1998 Information Technology Equipment – Immunity characteristics – Limits and methods of measurements including EN 61000-4-2:1995, EN 61000-4-3:1995, EN 61000-4-4:1995, EN 61000-4-5:1995, EN 61000-4-6:1996 , EN 61000-4-8:1993 and EN 61000-4-11:1994.
  • Council Directive 73/23/EEC and 89/336/EEC
  • The Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC (CE Mark)
  • FCC Part 68
  • FCC Part 15 Class B
  • Industry Canada CS03 Issue 8
  • Canadian interference equipment regulations. Limits and methods of measurements of radio interference characteristics of information technology equipment ICES-003
  • Australia safety standard
  • Australia/New Zealand Standard AS/NZS 3548( covered per EN55022), AS/NZS 60950 plus TS031
Dimensions 4.2" x 5.9"
