Dialogic Eiconcard S Series
Multi-protocol Serial Boards, Connectivity Software & Development Tools


Dialogic Eiconcard S Series

Dialogic Products
Eiconcard Adapters

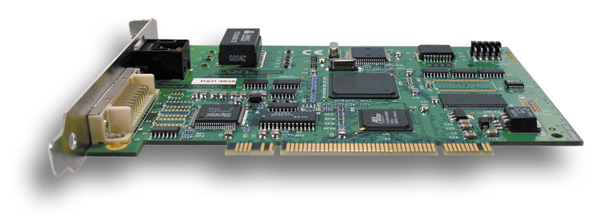

Dialogic Eiconcard S91 V2 PCI (WAN + ISDN)
#306-203
Contact us for pricing!
Dialogic Eiconcard S94 V2 PCI (2 x WAN)
#306-296
Contact us for pricing!
Dialogic Eiconcard S94 PCI Express (2 x WAN)
#306-298
Contact us for pricing!

Click here to jump to more pricing!

Overview:

The Eiconcard S Series are intelligent multi-protocol wide-area network (WAN) interface card for PCI/PCIe bus based servers. The Eiconcard S Series of WAN interface cards are targeted for branch office LAN application servers. They offer a Very High Speed Interface (VHSI) port and an ISDN BRI port, supporting line speeds of up to 2 Mbps (T1/E1) and 128 Kbps respectively. The Eiconcard S Series allows you to connect over a variety of WAN protocols such as X.25, Frame Relay, PPP, SDLC and HDLC, over leased lines, dial-up lines or ISDN lines. It offloads the server from low level protocol processing tasks, resulting in a saving of valuable server CPU resources.

The Eiconcard S Series works in conjunction with Dialogic' connectivity software, and is supported by Dialogic' development tools and third-party products. The Eiconcard S Series offers a comprehensive warranty of 5 years.

Features and Benefits:

  • Multi-protocol
  • On-board CPU
  • Up to 16MB RAM
  • Serial and ISDN port models
  • Backward compatible to SDK applications
  • Data compression
  • Worldwide Certification

Specifications:


Technical Specifications Eiconcard S91 Eiconcard S91 V2
Hardware
  • Motorola 68302 microprocessor @ 25 MHz
  • 1MB FLASH & 1MB DRAM
  • Bus Type: PCI 2.1 32bit / 33MHz (5V)
  • Plug and Play
  • One VHSI connector
  • One ISDN S/T interface
  • Motorola MPC850 @ 49MHz
  • 8MB SDRAM
  • Bus Type: PCI 2.2 32bit / 66MHz (3.3V, 5V)
  • Plug and Play
  • One VHSI connector
  • One ISDN S/T interface
Supported Operating Systems
  • Windows -- all versions from Windows 2000 to Windows 7 and Server 2008 R2
  • Linux - Redhat Enterprise Linux 4 and higher
  • Linux - SUSE Linux Enterprise Server 10 and higher
  • 32 and 64 bit support on all supported operating systems
Serial Interface
  • Autodetect Cable interfaces
  • V.24/V.28/ISO 2110
  • V.35/V.28/ISO 2593
  • EIA-530/RS-422 & 423/ISO 2110
  • V.36/V.10 & V.11/ ISO 4902
  • X.21/V.11 & X.27/ISO 4903
  • 36-pin high-density D-type connectors, supporting all interfaces with appropriate cable
  • Line speed up to 2Mbps per port
  • Internal or external clocking (DTE or DCE) or split transmit internal, receive external)
  • Protocol support: X.25, Frame Relay, PPP, SDLC, HDLC
Warranty 5 year warranty
Environmental Requirements
  • Operating temperature: 0°C to +50°C
  • Operating humidity: 5% to 90% (non-condensing)
  • Barometric operating pressure: 86 to 106 kPascals
  • Maximum tolerance in power supply variation: +5% to -5%
  • Storage temperature: -20°C to +70°C
Certifications
  • European Council Directive 73/23/EEC and 89/336/EEC
  • European Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC
  • EN 60950:2000
  • EN 55022:1998
  • EN 55024:1998 including: EN 61000-4-2:1995, EN 61000-4-3:1996, EN 61000-4-4:1995, EN 61000-4-5:1995, EN 61000-4-6:1996 and EN 61000-4-11:1994
  • TIA-968 (FCC Part 68)
  • FCC Part 15 Class B
  • Industry Canada CS03 Issue 8
  • Industry Canada ICES-003 (covered per FCC part 15)
  • AS/NZS 3548 ? Australia EMI (covered per EN 55022).
  • 11.TS001/AS/NZS3260? Australia safety. 12.TS031? Australia requirements for ISDN basic access
Dimensions 4.2" x 5.9"
Technical Specifications Eiconcard S94 PCI Express Eiconcard S94 V2
Hardware
  • Motorola Freescale 852T @ 98MHz
  • 16MBytes SDRAM
  • PLX 8111 PCI Express interface
  • Bus Type: Single lane PCIe 1.0a 2.5Gbit/Sec
  • Plug and Play
  • Two VHSI connectors
  • Motorola Freescale 852T @ 98MHz
  • 16MBytes SDRAM
  • Bus Type: PCI 2.2 64bit / 66MHz (3.3Volt)
  • Plug and Play
  • Two VHSI connectors
Supported Operating Systems
  • Windows 2000
  • Windows XP, Server 2003, Vista (32 & 64 bit)
  • Linux - Redhat and SuSe (32 & 64 bit)
Software & Drivers
  • Eiconcard Connections for Windows
  • Eiconcard Connections for Linux
  • Eiconcard Development Suite
  • Eiconcard LAN Client/Server
  • Drivers for IBM Communications Server
Serial Interface
  • Autodetect Cable interfaces
  • V.24/V.28/ISO 2110
  • V.35/V.28/ISO 2593
  • EIA-530/RS-422 & 423/ISO 2110
  • V.36/V.10 & V.11/ ISO 4902
  • X.21/V.11 & X.27/ISO 4903
  • 36-pin high-density D-type connectors, supporting all interfaces with appropriate cable
  • Line speed up to 2Mbps per port
  • Internal or external clocking (DTE or DCE) or split transmit internal, receive external)
  • Protocol support: X.25, Frame Relay, PPP, SDLC, HDLC
Warranty 5 year Warranty
Environmental Requirements
  • Operating temperature: 0°C to +50°C
  • Operating humidity: 5% to 90% (non-condensing)
  • Barometric operating pressure: 86 to 106 kPascals
  • Maximum tolerance in power supply variation: +5% to -5%
  • Storage temperature: -20°C to +70°C
Certifications
  • European Council Directive 73/23/EEC and 89/336/EEC
  • European Radio and Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.
  • EN 60950-1
  • EN 55022 Class B
  • EN 55024:1998 including: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 and EN 61000-4-11
  • FCC Part 15 Class B
  • Industry Canada ICES-003
  • AS/NZS CISPR22
Dimensions 4.2" x 6.6"
