Dialogic SPCI2S and SPCI4 SS7 Board
Low Density Signaling for Effective Value-Added Services

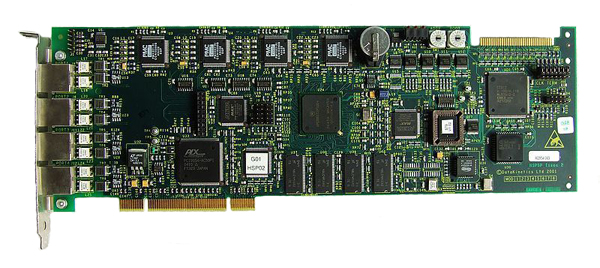

Dialogic SPCI2S and SPCI4 SS7 Board

Dialogic Products
Signaling Boards
Dialogic SS7 SPCI2SQ Board, 2 T1/E1, 4 LSL, 2 V.11
#881-589
Contact us for pricing!
Dialogic SS7 SPCI4Q Board, 4 T1/E1, 4 LSL
#881-590
Contact us for pricing!

Click here to jump to more pricing!

Overview:

The Dialogic SPCI2S and SPCI4 SS7 boards are entry-level products offering support for up to 4 SS7 links and 4096 ISUP circuits. The SPCI2S and SPCI4 combine SS7 protocol support with up to four digital line interfaces (T1/E1/J1) and an H.100 PCM highway.

The SPCI2S and SPCI4 are part of the Dialogic Distributed Signaling Interface (DSI), which enables affordable, high-performance, distributed, cross-platform, cross-operating-system signaling applications.

Features and Benefits:


Features Benefits
Conforms with DSI, enabling MTP and ISUP protocols to be supported onboard or used with DSI SS7 host protocol layers (MTP3, ISUP, TUP, SCCP, TCAP, MAP, IS41, INAP) Ensures reliable global deployment using protocols that are currently deployed in many networks worldwide
Ensures easy integration into third-party applications or protocol stacks at any level above MTP2
Entry-level product offering with support for up to 4 SS7 links and 4096 ISUP circuits SPCI "low density SS7 bundles" include SS7 board and MTP and ISUP software for most circuit-based, low-density market segments
H.100 CT Bus compliant interface Allows easy integration with other technologies, as well as the ability to transport signaling to other boards in a system or to external hosts

Specifications:


Technical Specifications
System size Small-to-Medium Enterprise
Form factor PCI
Resource bus H.100 SCbus with PEB connectors
Ports Software-selectable T1/E1/J1 digital network interfaces, up to 4 SS7 links
Operating systems Linux, Windows, Solaris
Network interface
  • SPCI4 - 4 T-1/E-1 network interfaces
  • SPCI2S - 2 T-1/E-1 with serial network interfaces
Onboard signaling support SS7 MTP / ISUP / TUP
Applications
  • Call control/call routing (i.e., migration of ISDN-based networks to SS7 networks)
  • Wireless messaging (i.e., short message service [SMS], televoting, short message service centers [SMSC], location-based services)
  • Advanced intelligent networking/Intelligent networking (i.e., Service Control Points, local number portability, network access, 800/free-phone services, premium rate numbers, virtual call centers, pre-paid calling, virtual private network [VPN], mobile office, unified messaging)
