Dialogic Diva Analog-4 Media Boards
Four-port ISDN Basic Rate Interface Media Boards

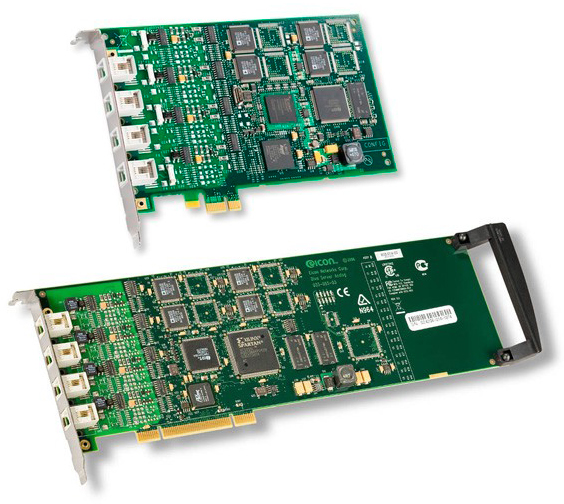

Dialogic Diva Analog-4 Media Boards

Dialogic Products
Diva Media Boards
Dialogic Diva UM-Analog-4 Media Board, PCI
4-port Analog, PCI, 2 Channels fax (V.34), Loop-Start, Full Size Form Factor
#306-384
Get a Quote!
Dialogic Diva UM-Analog-4 Media Board, PCIe
4-port Analog, PCIe, 2 Channels fax (V.34), Loop-Start, Half Size Form Factor
#306-388
Get a Quote!
Dialogic Diva Analog-4 Media Board, PCI
4-port Analog, PCI, 4 Channels fax (V.34), Loop-Start, Full Size Form Factor
#306-332
Get a Quote!
Dialogic Diva Analog-4 Media Board, PCIe
4-port Analog, PCIe, 4 Channels fax (V.34), Loop-Start, Half Size Form Factor
#306-389
Get a Quote!

Click here to jump to more pricing!

Overview:

The Dialogic Diva Analog Media Boards provide two, four, and eight ports and serve as an excellent communication platform, which scales from 2 to 64 channels (phone lines) per single server.

The Diva Analog Media Boards offer voice, speech, conferencing, VoIP, modem and fax features, and can serve as a base for many communication applications.  The boards are supported by many standard applications, and are also suitable for new application development. Diva Analog Media Boards are available in Low Profile, Half Size, or Full Size form factors and are available in both PCI and PCI Express (PCIe) versions. Diva Analog can be seamlessly combined with other Dialogic Diva Media Boards, such as E1/T1, ISDN PRI/BRI, and VoIP.

Because both PCI and PCIe versions share the same feature sets, migration from a PCI Server hardware to PCI Express hardware is easy. PCI and PCIe versions can also be used in the same server.

The Diva Analog Media Boards support the same set of application interfaces as other Diva Media Boards: the three Dialogic Diva APIs as well as CAPI, COM port, WAN Miniport and TTY.  Because of consistent interface support, applications written for one Diva Media Board will normally work without modification with Diva Analog Media Boards.

The Diva UM-Analog-2, UM-Analog-4, and UM-Analog-8 Media Boards support fax transmissions on half (50%) of their available channels.  The feature set of the Diva Media Boards in the UM series has been designed to meet the needs of typical Unified Messaging applications.

The Diva Analog-2, Analog-4, and Analog-8 boards support V.34 fax transmissions on all available channels.  The Diva Analog-2, Analog-4 and Analog-8 boards are normally referred to as part of the Universal series.

Features and Benefits:


Features Benefits
Onboard CPU with large RAM and powerful FPGA chip for fast data streaming between the host CPU, the DSPs, the phone line and the other active components onboard Can remove performance bottlenecks by offloading key real-time tasks that would ordinarily place an excessive burden on the host server, allowing Quality of Service (for example, voice quality and connection speed) to be more consistent
One powerful DSP dedicated to each communications channel Provides real-time processing of complex operations (such as V.90 data modem, V.34 fax receiver and transmitter, voice compression, or echo cancellation) without reducing overall system performance, which lowers implementation costs
Sophisticated hardware design Operates with low power consumption
Conforms to plug-and-play standards Permits easy installation and operation
Implements most supplementary services and many different analog signaling protocols Allows applications compatibility with major PBXs and can make a system based on Dialogic Diva technology ready for worldwide use
Pulse and tone dialing Handles enterprise voice, conferencing, fax, and remote access applications via any PBX offering analog trunk interfaces
Voice packetization into Real-time Transport Protocol (RTP), adaptive jitter buffer, voice compression (G.726, GSM), and Comfort Noise Generation (CNG) Permits legacy voice, speech, and conferencing applications to be used with VoIP clients and IP phones
Supports the same programming interfaces as other Dialogic Diva Media Boards, including CAPI, Dialogic Diva APIs and others Reduces porting efforts and time to market by making Diva Media Boards compatible with most standard telephony and communications applications
Up to eight Diva Media Boards of the same or different types can operate concurrently in a single server Easy scalability and flexibility to address an organization’s communications needs in changing environments, such as VoIP

Specifications:


Technical Specifications
Voice resources 4
Fax resources 4 (Universal series) and 2 (UM series)
Conferencing resources 4
Max. boards per server 8 (tested by Dialogic); more than 8 are possible (application and server dependent)
CSP Yes
Form factor Low Profile: 2-port PCI/PCIe
Resource bus PCI rev 2.2 up to 66 MHz or PCI Express 1.0a x1 lane (3.3/12 V)
Connection 4 RJ-45 connectors
Network interface Analog
Signaling Loopstart
Operating system Windows and Linux
Volts PCI: 5; PCI Express: 3.3 and 12
Required accessories None
Hardware
  • 32-bit RISC CPU, 100 MHz, 131 MIPS
  • 4 DSPs (32.76 MHz and 65 MIPS)
  • 16 MB onboard SDRAM Memory
  • Telephony interface:
    • 4 x RJ-10 (4-port), RJ-10/RJ-11 cables supplied
    • POTS trunk interface
    • Loopstart signaling
  • Physical dimensions:
    • 4/8-port PCIe: 167.65 mm x 111.15 mm (PCB)
    • 4/8-port PCIe: 180.96 mm x 126.31 mm (with standard bracket)
    • 4/8-port PCI: 312.00 mm x 106.68 mm (PCB)
    • 4/8-port PCI: 325.310 mm x 126.37 mm (with standard bracket)
    • 4/8-port PCI: 352.17 mm x 126.37 mm (with interface bracket and retainer)
  • I/O addresses, memory, and interrupt allocated automatically
  • Plug-and-play interface
  • PCI: PCI 2.2, up to 66 MHz, 32 bit (also supports 64 bit dual address cycle DMA), 5 V supply required, 3.3 V, or 5 V universal signaling, supported in backwards compatible PCI-X slots
  • Production quality: ISO 9002
Power Consumption and Environmental
  • Power consumption:
    • 4-port PCI: 0.45A @ +5 V (typical)
    • 4-port PCIe: 0.26A @ +3.3 V and 0.18A @ 12 V (typical)
  • Operating temperature: 10°C to 50°C
  • Storage temperature: 0°C to 70°C
  • Maximum tolerance in voltage fluctuation: According to the applicable PCI or PCI Express specification
Diva System Release Software and Dialogic Diva SDK Software
  • Supported operating systems: Windows and Linux. Details at www.dialogic.com/systemreleases
  • M-adapter feature (Dialogic patented technology): Combined Virtual Adapter, Internal Call Transfer, Explicit Call Transfer Emulation
  • SNMP support:
    • Windows: v2c
    • Linux: Net-SNMP v1, v2c and v3
  • Application interfaces (provided by Diva System Release Software and Diva SDK Software):
    • Microsoft: Diva API, Diva API for .NET, Diva Component API (VB.NET), COM Port, WAN Miniport, CAPI 2.0, extended CAPI, VoIP (SIP/RTP)
    • Linux: Diva API, TTY, CAPI 2.0, extended CAPI, VoIP (SIP/RTP)
Features – Signaling
  • Pulse dialing
  • Analog caller identification (via FSK and DTMF signaling)
  • Tone (DTMF/MF) dialing
  • Hold/retrieve (via hookflash)
  • Collection of post dial DTMF digits
  • Call progress analysis:
    • Busy tone detection
    • Ring back tone detection
    • Special Information Tone (SIT) detection
    • Fax/modem detection
    • Dial tone detection
Features – Media Processing
  • Voice and speech:
    • G.711 coding (A-law, µ-law selectable)
    • DTMF detection, generation, clamping, and filtering
    • Generic tone detection and generation
    • Pulse tone detection
    • Full-duplex voice, barge-in
    • Voice Activity Detection (VAD)
    • Silence detection
    • Human talker detection
    • Recording Automatic Gain Control (AGC)
    • Pitch control
    • Audio tap
    • G.168 echo cancellation, up to 128 ms tail length
  • Voice over IP (VoIP):
    • G.711 voice coder (64 kbps, µ-law, A-law)
    • G.726 voice coder (32 kbps)
    • G.729 voice coder (VoIP licenses required)
    • GSM voice coder (13 kbps)
    • Adaptive jitter buffer
    • Voice Activity Detection (VAD)
    • Comfort Noise Generation (CNG)
    • Real-time Transport Protocol (RTP) framing
    • G.168 echo cancellation, up to 128 ms tail length
  • Switching and conferencing:
    • Onboard and cross-board switching and (large) conferencing via line interconnect (call tromboning)
    • Automatic Gain Control (AGC)
  • Support for Fax class 1 and 2
  • Support for Fax Group 3, T.30:
    • V.17, V.29, V.27ter, V.21, V.34 modulation
    • Fax polling/ fax on demand
    • Up to 33.6 kbps with each channel (send and receive)
    • Page formats: ISO A4, B4, A3
    • Fax compression MH, MR, MMR
    • Error Correction Mode (ECM)
    • Standard, fine, super-fine and ultra-fine resolution
    • Color fax (JPEG-format)
  • Data modem (RAS, POS and other Low Bit Rate (LBR) applications) (modem licenses required):
    • V.21, V.22, V.22bis, Bell 103, Bell 212A, V.32, V.32bis, V.34, V.42, V.42bis, V.90, MNP4, MNP5
    • Modem with extension: V.18, V.21, Bell 103, V.23, EDT, Baudot45/47/50 incl. DTMF, V.42, V.42bis
Warranty 5-years

Documentation:

Download the Dialogic Diva Analog Media Boards Datasheet (.PDF)
